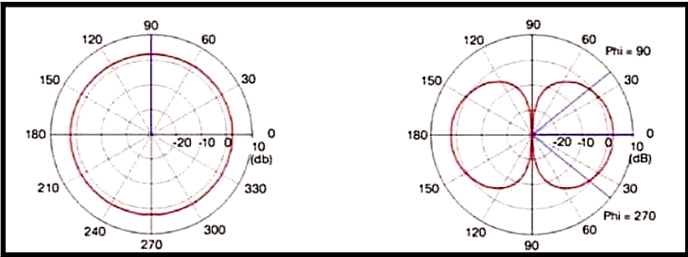

This is a dipole antenna
Dipole antennas exhibit an omnidirectional radiation pattern in the horizontal plane and a figure-eight directional pattern in the vertical plane if the dipole is oriented vertically.
Answer is B. Even the pattern shown is a patter of a omnidirectional antena, that pattern is specific of dipole antenas, so making most correct between two
I agree with XalaGyan. Question refers to the type of antenna. Dipole is an example of an Omnidirectional Antenna.
https://www.ccexpert.us/wireless-networks/common-antenna-types.html
I do understand and the question is vague, dipole is also a type of omnidirectional antenna, but omnidirectional antennas have varying patterns, in this case the most specific and extact match of the pattern is the dipole antena. for that reason i keep on B as the correct answer.
There are different types of omnidirectional antennas. The ideal omni antenna would radiate the same in all directions. The dipole antenna does not. It has a donut shape like this one. That is why the answer is dipole and not omnidirectional (which does not always look like this).
Cisco encor guide: "There are two basic types of antennas, omnidirectional and directional." ... "A common type of omnidirectional antenna is the dipole."
Yes, picture displays A SPECIFIC kind of omnidirectional antenna - a dipole one.
Dipole antenna is omnidirectional..
