Suggested Answer:
The service port can be used management purposes, primarily for out-of-band management. However, AP management traffic is not possible across the service port. In most cases, the service port is used as a ג€last resortג€ means of accessing the controller GUI for management purposes. For example, in the case where the system distribution ports on the controller are down or their communication to the wired network is otherwise degraded. A dynamic interface with the Dynamic AP Management option enabled is used as the tunnel source for packets from the controller to the access point and as the destination for CAPWAP packets from the access point to the controller. The virtual interface is used to support mobility management, Dynamic Host Configuration Protocol (DHCP) relay, and embedded Layer 3 security such as guest web authentication. It also maintains the DNS gateway host name used by Layer 3 security and mobility managers to verify the source of certificates when Layer 3 web authorization is enabled. Reference: https://www.cisco.com/c/en/us/td/docs/wireless/controller/8-5/config-guide/b_cg85/ports_and_interfaces.html

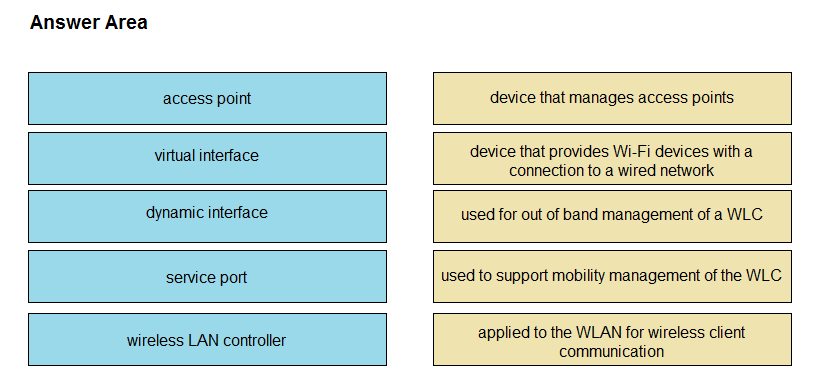

access point = proved wireless device with connection to the wired network
WLC = Manage access point
Service port = out of band management of WLC
virtual interface = mobility management WLC
Dynamic interface = Aplied to the WLAN for wireless client communication
From the WLC point of view, client is an AP, therefore Dynamic Int is correct to the last one. However from AP point of view, client is the end device, and thus the Virtual Interface fits in here.
So no clear answer to the last one (WLAN wireless client communication)
Yes and here are some articles to reference
https://www.ccexpert.us/network-design/wlan-controllers.html
http://www.firewall.cx/cisco-technical-knowledgebase/cisco-wireless/1077-cisco-wireless-controllers-interfaces-ports-functionality.html
upvoted 2 times
...
...
