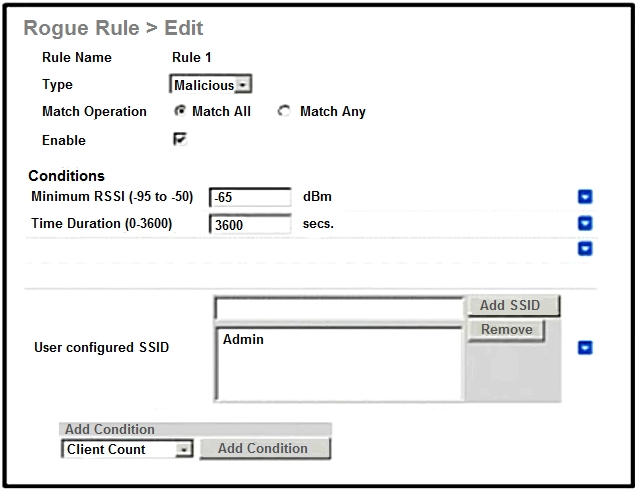

Refer to the exhibit. An engineer tries to manage the rogues on the Cisco WLC. Based on the configuration, which AP is marked as malicious by the controller?
A.
rogue AP with SSID admin seen for 4000 seconds and heard at -70dBm
B.
rogue AP with SSID admin seen for 3000 seconds and heard at -60dBm
C.
rogue AP with SSID admin seen for 4000 seconds and heard at -60dBm
D.
rogue AP with SSID admin seen for 3000 seconds and heard at -70dBm
Answer C
Duration—Requires that the rogue access point be detected for a minimum period of time. If you choose this option, enter a value for the minimum detection period in the Time Duration text box. The valid range is 0 to 3600 seconds (inclusive), and the default value is 0 seconds.
Meaning the Rouge AP would need to have a stronger signal than -65db and seen longer than 3600 sec.
Duration - Requires that the rogue access point be detected for a minimum period of time (everything greater than that triggers the rule - 4000 is more than 3600).
RSSI - Requires that the rogue access point have a minimum RSSI value (everything greater than that triggers the rule - -60dBm is greater signal power than -65dBm)
I checked 4 sites. One go for 4000s 70dbm and most go for 3000s 70dbm
Both are incorrect
MINIMUM DURATION, so a greater duration than 3600 is 4000s, so 3000s ruled out
MINIMUM RSSI, -60 is greater than -65, -65 is greater than -70 ... so -70 ruled out
CONCLUSION: -60db 4000s, and I dont care if even Cisco says opposite, as per its own definition for these parameters
Provided answer is correct. 1) it has to be heard at -70 because the alert policy threshold is at -65 therefore it has to be higher than -65 to trigger an alert. The timer threshold is set at and up to 3600 seconds thus the alert trigger has to be 3000 as it would never poll the rogue for more than 3600. In conclusion it has to be D and provided answer is correct.
