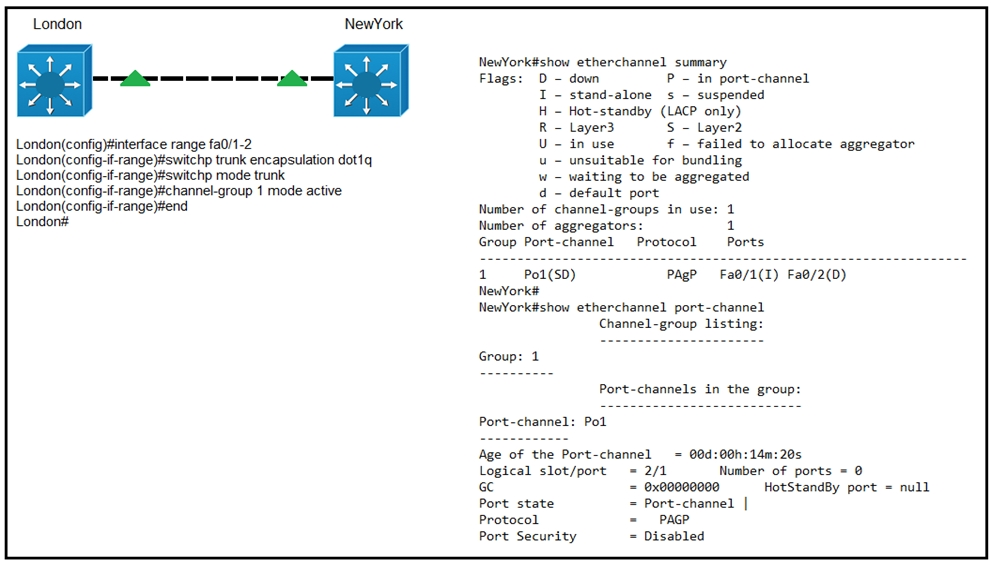

Refer to the exhibit. Communication between London and New York is down. Which command set must be applied to the NewYork switch to resolve the issue?
A.
NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode negotiate NewYork(config-if)#end NewYork#
B.
NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode on NewYork(config-if)#end NewYork#
C.
NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode passive NewYork(config-if)#end NewYork#
D.
NewYork(config)#no interface po1 NewYork(config)#interface range fa0/1-2 NewYork(config-if)#channel-group 1 mode auto NewYork(config-if)#end NewYork#
No
only Active - Active or Active - Passive
ON means that the port will become part of the EtherChannel without negotiating with the other end (neither LACP nor PAgP).
C is correct
As we have LACP on the London side. Then we have to remove the PAgp on the NY side and configure it as passive for LACP. Active and Passive are forming etherchannel for LACP.
Answer is C. New York is currently in PAgp mode, and London has been configured as LACP. So we need to change NewYork to LACP, which makes the answer C.
Right, so answer D won't work, since for D, you're setting it back to PaGp which has been the problem all along. London is Active (LACP) so NY also has to be LACP
Right, so that's why for NY, which all answers have you reconfigure, you want to set as LACP, which answer C does.
Granted C has it set to passive, but London is active so that's OK.
sw2#show etherchannel summary
Flags: D - down P - bundled in port-channel
I - stand-alone s - suspended
H - Hot-standby (LACP only)
R - Layer3 S - Layer2
U - in use f - failed to allocate aggregator
M - not in use, minimum links not met
u - unsuitable for bundling
w - waiting to be aggregated
d - default port
Number of channel-groups in use: 1
Number of aggregators: 1
Group Port-channel Protocol Ports
------+-------------+-----------+-----------------------------------------------
2 Po2(SU) LACP Et0/1(P)
sw2#
Active/Pasive will work... provided ans is correct
