Exam 350-401 topic 1 question 209 discussion

Actual exam question from Cisco's 350-401
Question #: 209
Topic #: 1
[All 350-401 Questions]

DRAG DROP -

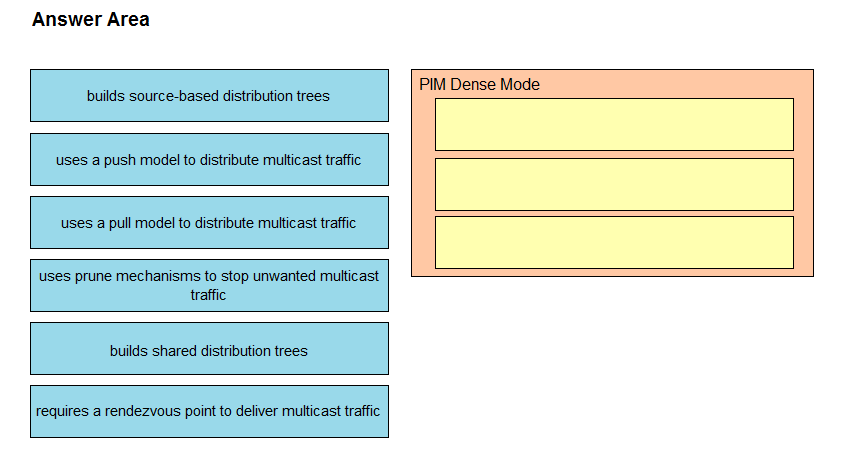

Drag and drop the characteristics of PIM Dense Mode from the left to the right. Not all options are used.
Select and Place:

Show Suggested Answer Hide Answer

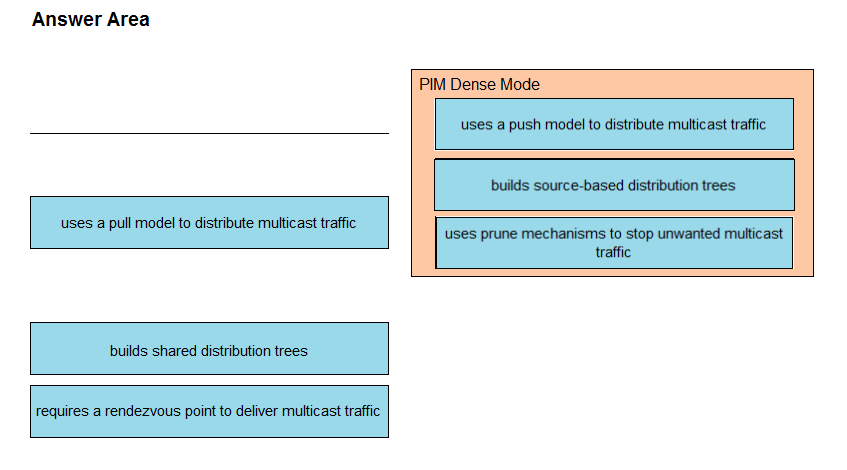

Suggested Answer:
by kthekillerc at Sept. 16, 2021, 4 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
kthekillerc
Highly Voted 3 years, 4 months ago
Provided answer is correct
upvoted 7 times
...
c48ef2b
Most Recent 1 month ago
PIM-DM initially floods multicast traffic throughout the network. Routers that have no downstream neighbors prune back the unwanted traffic. This process repeats every 3 minutes.
upvoted 1 times
...
kldoyle97
11 months, 1 week ago
In dense mode, a router assumes that all other routers want to forward multicast packets for a group. If a router receives a multicast packet and has no directly connected members or PIM neighbors present, a prune message is sent back to the source. Subsequent multicast packets are not flooded to this router on this pruned branch. PIM builds source-based multicast distribution trees. https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipmulti_pim/configuration/xe-16/imc-pim-xe-16-book/imc-tech-oview.html
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
