Exam 300-630 topic 1 question 33 discussion

Actual exam question from Cisco's 300-630
Question #: 33
Topic #: 1
[All 300-630 Questions]

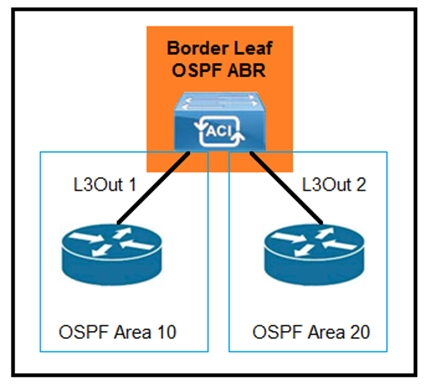

Refer to the exhibit. Which configuration must be implemented to allow intra-VRF transit routing between the two external routers?

  • A. Deploy both areas under the same L3Out policy
  • B. Change one of the areas to area 0
  • C. Configure OSPF virtual links
  • D. Modify L3Out 1 to use the same OSPF area as L3Out 2
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️
by apot at Oct. 7, 2021, 9:26 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
apot
Highly Voted 3 years, 1 month ago
Correct B
upvoted 5 times
...
kamkol
Most Recent 6 months, 3 weeks ago
Selected Answer: B
B. Change one of the areas to area 0 for routing updates between backbone area 0 and other OSPF areas
upvoted 2 times
...
brocoli
2 years, 3 months ago
From: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/guide-c07-743150.html#TransitRoutingtopology "When Transit Routing is performed on the same border leaf across two OSPF L3Outs, one of them needs to be OSPF Area 0 because there will be a route exchange between the OSPF areas without going through infra MP-BGP." --> So indeed B.
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.

Upvoting a comment with a selected answer will also increase the vote count towards that answer by one. So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.
