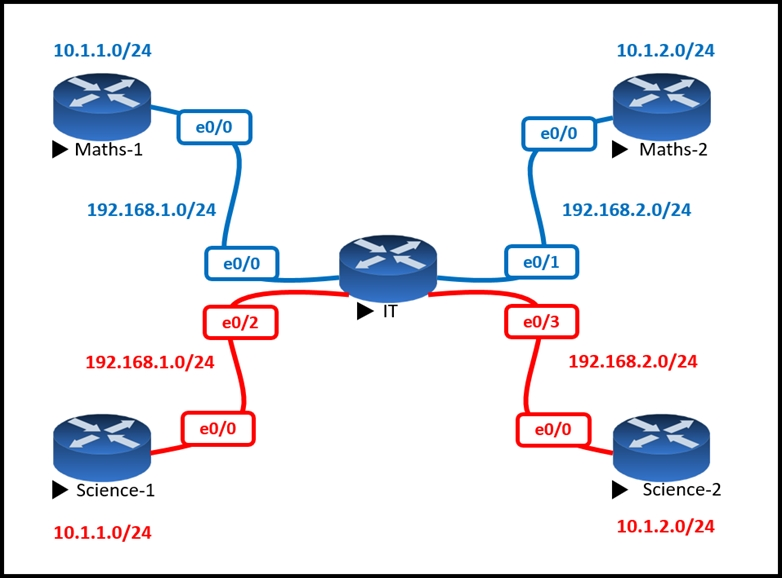

Refer to the exhibit. The Math and Science departments connect through the corporate IT router, but users in the Math department must not be able to reach the Science department and vice versa. Which configuration accomplishes this task?
A.
vrf definition Science address-family ipv4 ! interface E 0/2 ip address 192.168.1.1 255.255.255.0 no shut ! interface E 0/3 ip address 192.168.2.1 255.255.255.0 no shut
B.
vrf definition Science address-family ipv4 ! interface E 0/2 vrf forwarding Science ip address 192.168.1.1 255.255.255.0 no shut ! interface E 0/3 vrf forwarding Science ip address 192.168.2.1 255.255.255.0 no shut
C.
vrf definition Science address-family ipv4 ! interface E 0/2 ip address 192.168.1.1 255.255.255.0 vrf forwarding Science no shut ! interface E 0/3 ip address 192.168.2.1 255.255.255.0 vrf forwarding Science no shut
D.
vrf definition Science ! interface E 0/2 ip address 192.168.1.1 255.255.255.0 no shut ! interface E 0/3 ip address 192.168.2.1 255.255.255.0 no shut
A.
vrf definition Science
address-family ipv4
!
interface E 0/2
ip address 192.168.1.1 255.255.255.0
no shut!
interface E 0/3
ip address 192.168.2.1 255.255.255.0
no shut
B.
vrf definition Science
address-family ipv4
!
interface E 0/2
vrf forwarding Science
ip address 192.168.1.1 255.255.255.0
no shut
!
interface E 0/3
vrf forwarding Science
ip address 192.168.2.1 255.255.255.0
no shut
C.
vrf definition Science
address-family ipv4
!
interface E 0/2
ip address 192.168.1.1 255.255.255.0
vrf forwarding Science
no shut
!
interface E 0/3
ip address 192.168.2.1 255.255.255.0
vrf forwarding Science
no shut
D.
vrf definition Science
!
interface E 0/2
ip address 192.168.1.1 255.255.255.0
no shut
!
interface E 0/3
ip address 192.168.2.1 255.255.255.0
no shut
Answer B is correct.
Remember that you must add the vrf to the interface first and then the ip address. Adding the ip address before the vrf forwarding will remove the ip address from the interface.
ip vrf Science
interface e0/2
ip vrf forwarding Science
ip address 192.168.1.1 255.255.255.0
interface e0/2
ip vrf forwarding Science
ip address 192.168.2.1 255.255.255.0
Entering the vrf-bound address-family ipv4 configuration mode is typically used to configure BGP. It's not clear why it's here.
