Exam 350-901 topic 1 question 156 discussion

Actual exam question from Cisco's 350-901
Question #: 156
Topic #: 1
[All 350-901 Questions]

DRAG DROP -

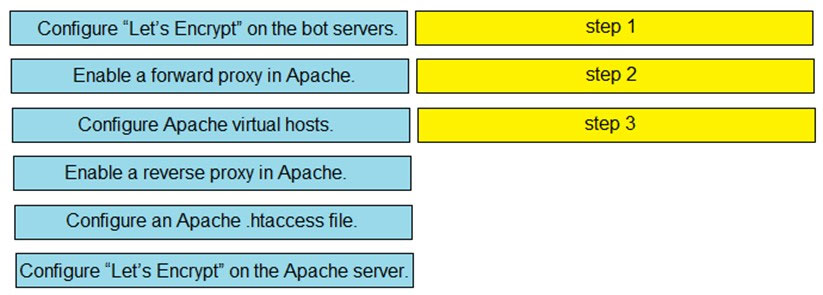

An engineer must access multiple bots that are running in an internal infrastructure. A different HTTPS URL is required for each bot. The infrastructure has just one public IP address and a Linux server with Apache installed. Drag and drop the actions from the left into the order of steps on the right to enable access to the bots inside. Not all options are used.
Select and Place:

Show Suggested Answer Hide Answer

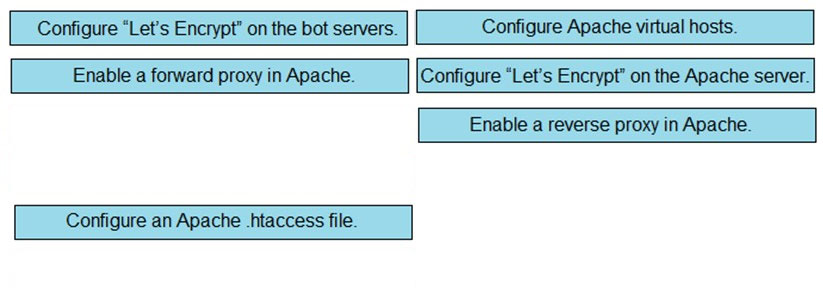

Suggested Answer:
by chulenzy at Oct. 26, 2021, 8:36 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
m0nking
Highly Voted 3 years, 5 months ago
1. Enable a reverse proxy server on Apache 2. Set up vhost files 3. install LetsEncrypt on apache server
upvoted 18 times
...
duracell
Highly Voted 3 years, 4 months ago
1. Enable ReverseProxy on Apache Server 2. Setup virtualhosts on Apache Server 3. Install LetsEncrypt on Apache Server https://acabey.xyz/blog/posts/6-8-17/
upvoted 10 times
kirrim
1 year, 6 months ago
reference URL no longer available, returns 404 Here's a replacement for reference purposes: https://bendellar.com/apache-as-reverse-proxy-for-letsencrypt-free-https-certificates/
upvoted 2 times
...
...
williamluo
Most Recent 6 months ago
To allow access to multiple bots each with a unique HTTPS URL through a single public IP address using Apache, here’s the correct order of steps: Configure “Let’s Encrypt” on the Apache server. This step sets up HTTPS for secure access to the Apache server. Let's Encrypt will provide SSL certificates, allowing secure HTTPS connections. Configure Apache virtual hosts. Virtual hosts allow Apache to serve different applications or services on the same IP but with different URLs (or subdomains), each routing to a specific bot. Enable a reverse proxy in Apache. The reverse proxy in Apache will direct incoming requests to the appropriate bot server based on the URL or subdomain, allowing internal bots to be accessed from outside.
upvoted 2 times
rushrun
3 weeks, 6 days ago
Verified by Grok
upvoted 1 times
...
...
JCGO
1 year, 9 months ago
Trying to figure out, does the order matters here ? Mean from my side, i would definitely do stuff with certs first, after that changed config of virtualhosts + proxypass at the same time and restart apache. so may be: 1) install letsencrypt 2) configure vhosts 3) configure reverse proxy ?
upvoted 1 times
...
Teringzooi
2 years, 7 months ago
Correct answers: 1. Enable ReverseProxy on Apache Server 2. Setup virtualhosts on Apache Server 3. Install LetsEncrypt on Apache Server https://acabey.xyz/blog/posts/6-8-17/
upvoted 2 times
...
ferock
3 years ago
1. Enable a reverse proxy in Apache 2. Configure Apache virtual host 3. Configure Let's Encrypt on the bot servers https://acabey.xyz/blog/posts/6-8-17/
upvoted 1 times
ferock
3 years ago
Sorry. 3. Configure Let's Encrypt on the Apache server
upvoted 2 times
...
...
