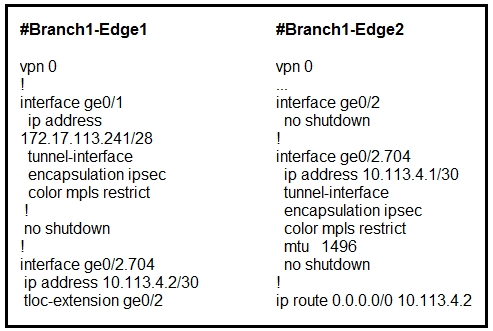

B is correct. the config shown on B shows the correct interface on the tloc-extension (ge0/1) and also has the correct ip address 10.113.4.2. Note that the default route on Edge2 points to 10.113.4.2
D is incorrect because:
1- has the incorrect address 10.113.4.1
2- the tloc-extension interface refers to the same interface where the tloc is being defined (ge0/2). That is not possible.
100% B
With above configuration, only Branch1-Edge2 router sends traffic to Branch1-Edge1 router if the main route to MPLS fails (as only Edge2 has the default route to Edge1).
Therefore we have to configure the TLOC Extension under subinterface ge0/2.704 of Branch1-Edge1 with the command “tloc-extension ge0/1”.
Note: We change the mtu to 1496 to accommodate for the dot
upvoted 4 times
...
...
