Exam 300-415 topic 1 question 122 discussion

Actual exam question from Cisco's 300-415
Question #: 122
Topic #: 1
[All 300-415 Questions]

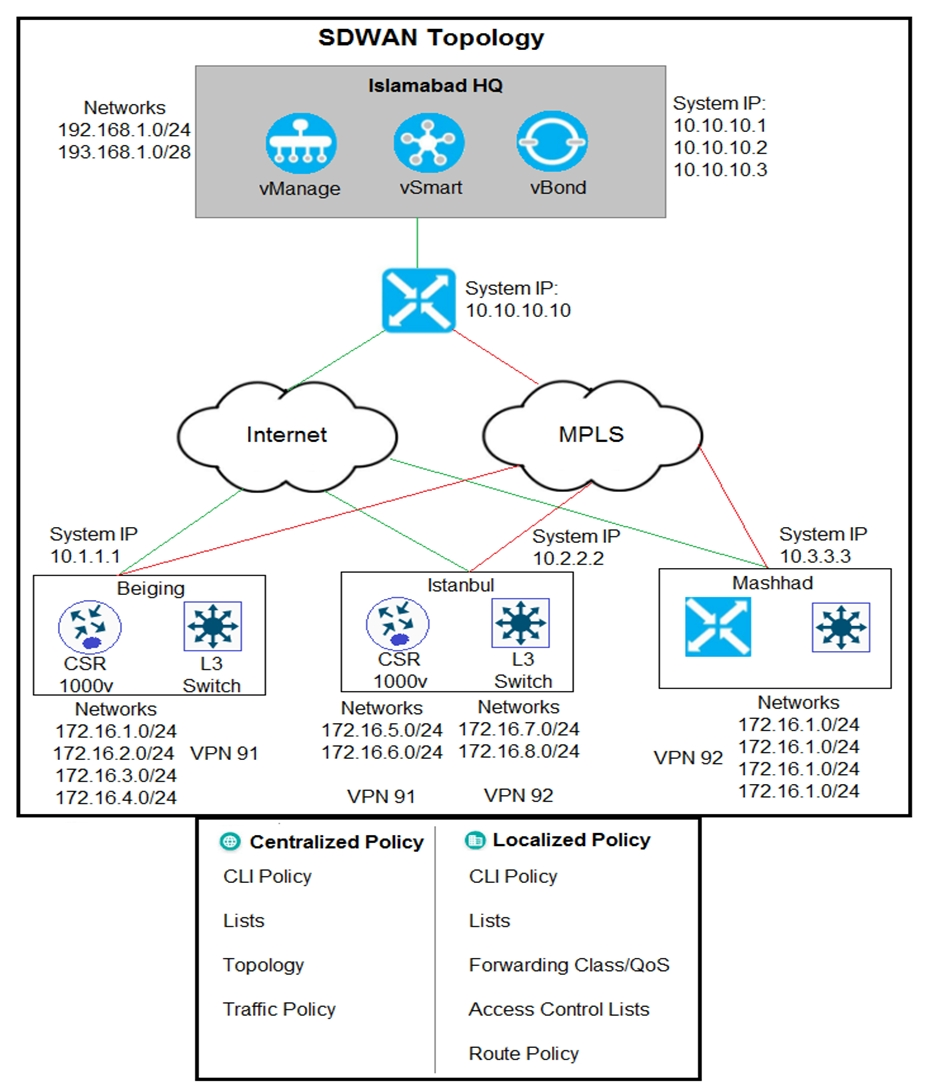

Refer to the exhibit. The Cisco SD-WAN network is configured with a default full-mesh topology. Islamabad HQ and Islamabad WAN Edges must be used as the hub sites. Hub sites MPLS TLOC must be preferred when forwarding FTP traffic based on a configured SLA class list. Which policy configuration does the network engineer use to call the SLA class and set the preferred color to MPLS?

  • A. Centralized Policy, Traffic Policy
  • B. Centralized Policy, Topology
  • C. Localized Policy, Forwarding Class
  • D. Localized Policy, Route Policy
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
thomazmr
9 months, 2 weeks ago
Selected Answer: A
Correct A
upvoted 1 times
...
Aldebeer
11 months, 2 weeks ago
Selected Answer: A
the best answer is A
upvoted 1 times
...
AJMD
1 year, 2 months ago
Selected Answer: A
Correct A
upvoted 1 times
...
AJMD
1 year, 2 months ago
Correct A
upvoted 1 times
...
hopatrickhk88
1 year, 3 months ago
Question is asking for "Which policy configuration does the network engineer use to call the SLA class and set the preferred color to MPLS?" To fulfil the requirements, AAR and data traffic policy should be used and hence Centralized policy, Traffic Policy is the answer.
upvoted 1 times
...
carlovalle
2 years, 2 months ago
An SLA Class list only can be added via AAR policy. AAR policy is part of Traffic-Rules, not traffic-Policy, so I think that best answer would be Centralized-Traffic Rules (doesnt exists)
upvoted 1 times
...
khanda
2 years, 2 months ago
Selected Answer: A
CONFIGURATION | POLICIES - Centralized Policy> Data Policy This will be AAR to call the SLA list and pin traffic to MPLS color.
upvoted 2 times
...
carlovalle
2 years, 3 months ago
I think A and B should be correct IF it's multiple options Topology for HUb and Spoke and Traffic for AAR
upvoted 1 times
...
khanda
2 years, 3 months ago
CONFIGURATION | POLICIES - Centralized Policy> Data Policy
upvoted 1 times
...
Han2022
2 years, 5 months ago
The answer should be A
upvoted 4 times
...
she_ccie
2 years, 8 months ago
I just worked on this in my lab. You cannot match FTP in a Topology policy. You must move to the Traffic Data in "Configure Traffic Rules" to be given the opportunity to match on "FTP protocol." Also - the topology is not being changed. This is more of an old fashioned PBR that is changing the direction of FTP traffic. IMHO
upvoted 1 times
she_ccie
2 years, 8 months ago
You can create individual policy components directly and then use them or import them when you are using the policy configuration wizard: In the title bar, click the Custom Options drop-down. For centralized policies, select the Centralized Policy tab and then select a policy component: CLI policy—Create the policy using the command-line interface rather than the policy configuration wizard. Lists—Create groups of interest to import in the Group of Interest screen in the policy configuration wizard. Topology—Create a hub-and-spoke, mesh, or custom topology or a VPN membership to import in the Topology screen in the policy configuration wizard. Traffic Policy—Create an application-aware routing, traffic data, or cflowd policy to import in the Traffic Rules screen in the policy configuration wizard. https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/Policy-basics.html
upvoted 1 times
...
...
Almanac
2 years, 9 months ago
Correct answer is A. it should be configure on App Aware., Under Traffic Rule matching the FTP application and action select the" SLA class list" preferred color MPLS
upvoted 2 times
...
juniper
2 years, 9 months ago
A is correct
upvoted 2 times
...
Speirsington
2 years, 10 months ago
Centralised policy > Topology https://www.networkacademy.io/ccie-enterprise/sdwan/lab2-allowing-hub-to-spoke-routing
upvoted 3 times
JTPRO
2 years, 9 months ago
Why should it be "Centralized Policy > Topology"? "Centralized Policy > Traffic Policy" is also a valid option in vManage.
upvoted 2 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
