Question and answers are wiered:

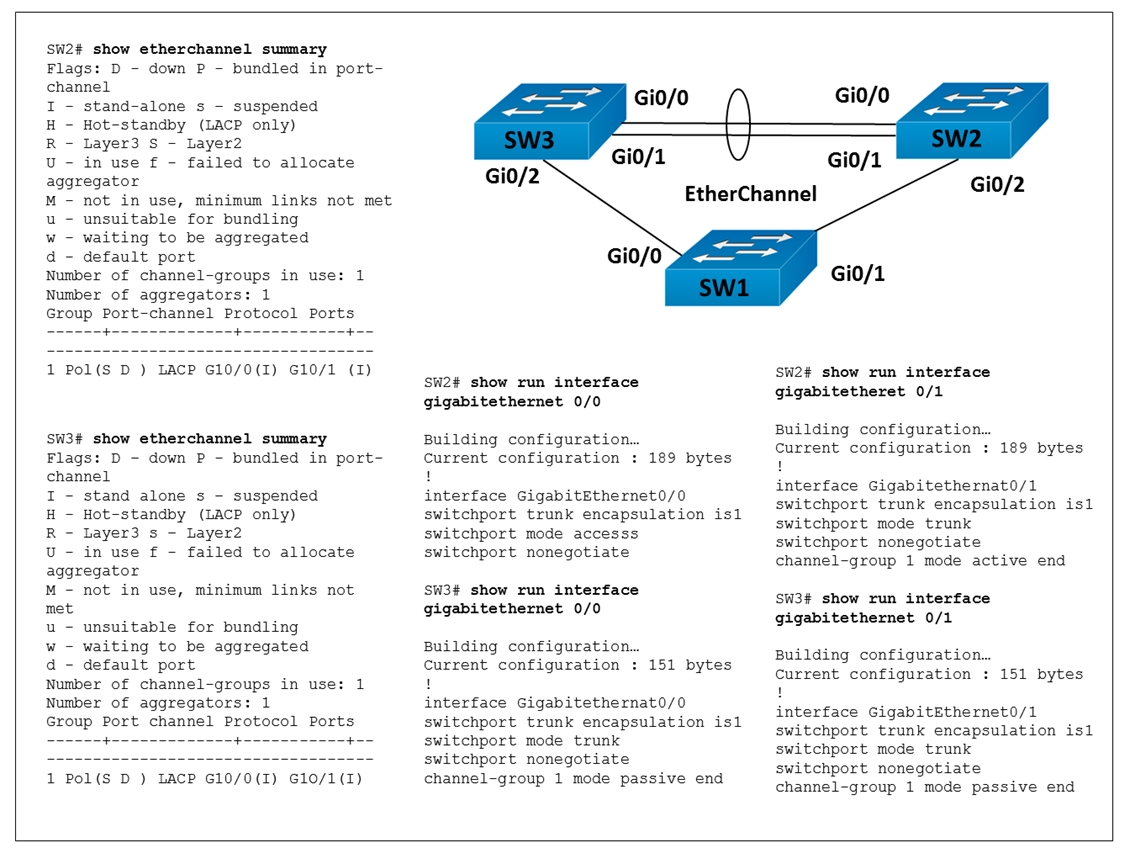

-according to config snippet SW2 G0/0 is not configured to participate in the channel
-according to show command none of the Interfaces is participating in the Channel But i can't find a mistake why G0/1 is not working.
The given answer is the best i can find, but it will not fix that all interfaces participate in teh channel afterwards
Clearly the G0/0 link is the problem, but wondered why G0/1 would not come up.
Then realized not only is there a link state mismatch, but the Ethernet pair on the same switch is a mismatch so LACP throws the whole thing out, even though G0/1 between switches is a match
2 configurations need to be done
#1 on SW2 need to set G0/0 to Trunk
#2 on SW2 need to set G0/0 to LACP Mode Active < If you don't set this up it will not bundle and it will be missing the config.
Answer B is correct.
Just the typo in SW2 Gi0/0 config snippet. Where ther is missing " channel-group 1 mode active".
SW2 Gi0/0 , switchport mode access need to chagne to trunk.
The answer B would not bring the etherchannel up. For the etherchannel to be up, we need 'channel-group 1 mode active on SW2 go0/0.' There are two issues in the config of Gi0/0 of SW2.
wasn't trunk mode known to be sending out DTP packets, despite being a static configuration? when we use 'swi mode trunk' by default dtp packets will be sent unless we issue 'switchport nonegotiate'
All the physical interfaces in the ether-channel must have the same config (access/trunk, allowed VLANs, duplex, speed) to form logical channel. Correct answer is B
upvoted 2 times
...
