Exam 300-420 topic 1 question 21 discussion

Actual exam question from Cisco's 300-420
Question #: 21
Topic #: 1
[All 300-420 Questions]

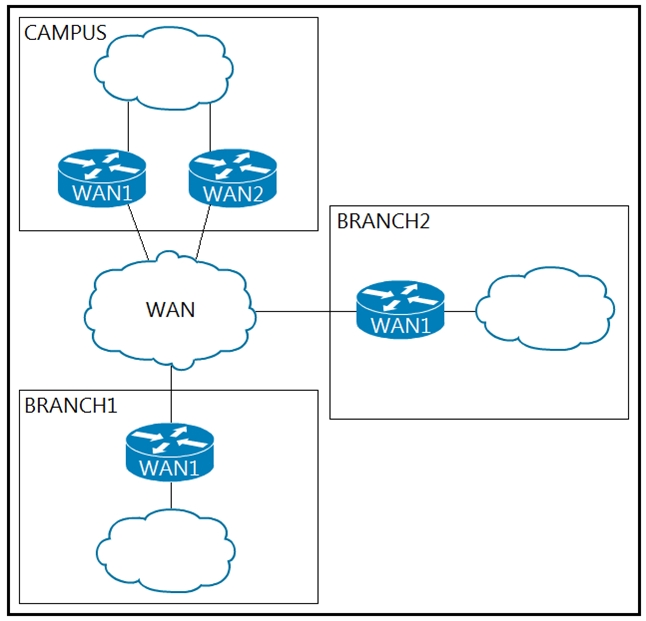

Refer to the exhibit. An architect must design an IP addressing scheme for a multisite network connected via a WAN transit. The campus site must accommodate
12,000 devices, and the branch sites must accommodate 1,000 devices. Which address scheme optimizes network device resources, contains convergence events to the different blocks of the network, and ensures the network's future growth?

  • A. ג€¢ Campus: 10.0.0.0/18 ג€¢ Branch1: 10.0.192.0/21 ג€¢ Branch2: 10.0.200.0/21
  • B. ג€¢ Campus: 10.0.0.0/16 ג€¢ Branch1: 10.255.0.0/20 ג€¢ Branch2: 10.255.16.0/20
  • C. ג€¢ Campus: 10.0.0.0/10 ג€¢ Branch1: 10.64.0.0/10 ג€¢ Branch2: 10.128.0.0/10
  • D. ג€¢ Campus: 10.0.0.0/20 ג€¢ Branch1: 10.0.64.0/21 ג€¢ Branch2: 10.0.128.0/21
Show Suggested Answer Hide Answer
Suggested Answer: A 🗳️

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
mgiuseppe86
7 months, 3 weeks ago
/18 = 16384 address /21 = 2048 addresses a /20 (1021 usable IPs) would have worked for the Branch Networks but that wasnt available in the answers.
upvoted 1 times
...
akbntc
10 months ago
A is correct.
upvoted 1 times
...
Noproblem22
1 year, 4 months ago
A is correct
upvoted 1 times
...
XalaGyan
2 years, 1 month ago
Provided answer is correct
upvoted 1 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
