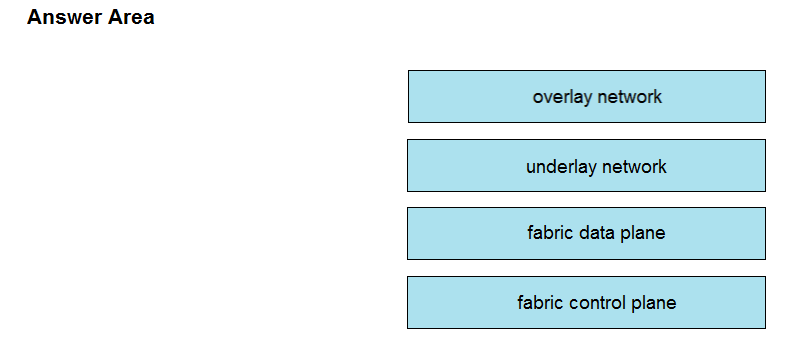

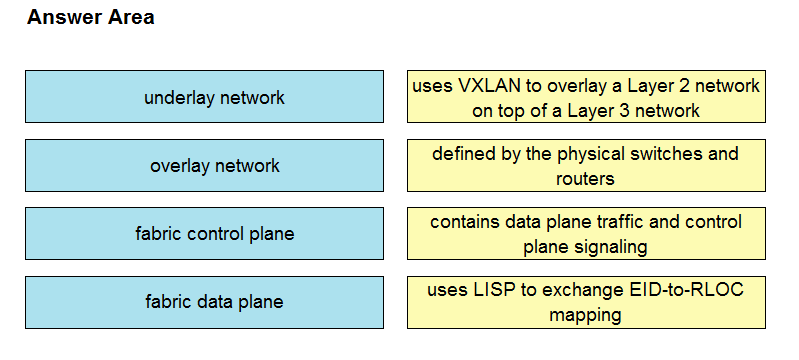

Uses VXLAN - Data plane.
Defined by the physical switches and routers - Underlay.
Contains data plane traffic and control plane traffic - Overlay.
Uses LISP - Control plane.
Data Plane = VXLAN
Underlay = Physical equipment
Overlay = Virtual environment (Control/Data plan administration)
Fabric Control Plane = LISP
You learn this extensively in ENCOR...
Overlay and Data plane should be swapped.
"An overlay network is created on top of the underlay network through virtualization (virtual networks). The data plane traffic and control plane signaling are contained within each virtualized network,"
https://www.cisco.com/c/en/us/td/docs/solutions/CVD/Campus/cisco-sda-design-guide.html
