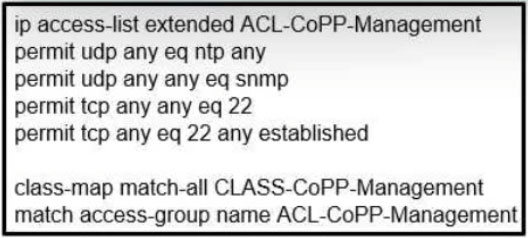

Refer to the exhibit. An engineer must protect the CPU of the router from high rates of NTP, SNMP, and SSH traffic. Which two configurations must be applied to drop these types of traffic when it continuously exceeds 320 kbps? (Choose two.)
A.
R1(config-pmap)#class CLASS-CoPP-Management R1(config-pmap-c)#police 32 conform-action transmit exceed-action drop violate-action transmit
B.
R1(config)#policy-map POLICY-CoPP R1(config-pmap)#class CLASS-CoPP-Management R1(config-pmap-c)#police 320000 conform-action transmit exceed-action drop violate-action drop
C.
R1(config)#policy-map POLICY-CoPP R1(config-pmap)#class CLASS-CoPP-Management R1(config-pmap-c)#police 320000 conform-action transmit exceed-action transmit violate-action drop
D.
R1(config)#control-plane R1(config-cp)# service-policy output POLICY-CoPP
E.
R1(config)#control-plane R1(config-cp)# service-policy input POLICY-CoPP
https://www.cisco.com/c/en/us/td/docs/ios/12_2sb/feature/guide/cpp.html
exceed-action action: Specifies the action to take on packets that exceed the rate limit
violate-action action: Specifies the action to take on packets that continuously exceed the police rate limit.
"continuously exceeds" -> Hence, option C,E.
R1(config)#policy-map POLICY-CoPP
R1(config-pmap)#class CLASS-CoPP-Management
R1(config-pmap-c)#police 320000 conform-action transmit exceed-action transmit violate-action drop
E.
R1(config)#control-plane
R1(config-cp)# service-policy input POLICY-CoPP
One thing to take in mind , this is only half right.
We here difine only CIR no PIR (Peak information rate), without PIR our violate-action drop means nothing.
Command should look like this
police 320000(CIR) 640000(PIR) conform-action transmit exceed-action transmit violate-action drop
CIR= Committed Information Rate , PIR =Peak information Rate . This is what policing does , ensues speed under <CIR is guaranteed , values <PIR (sometimes transmit, short period) Values over PIR DROP .
With B.:
When the traffic rate is below 320 Kbps the conform-action is to transmit the packet, when it exceeds 128 Kbps we will drop the packet.
violate-action specifies the action to take on packets that violate the normal and maximum burst sizes (default normal burst size is 1500 bytes; maximum burst size in bytes depends on the platform) >> in our case drop for B and C. >>> It's not asking for bursts it's asking for continious....
not sure but CE my choise;
cisco(config-pmap-c)#police 320000 conform-action transmit exceed-action tra
cisco(config-pmap-c)#$00 conform-action transmit exceed-action transmit ?
violate-action action when rate is greater than conform + exceed burst
<cr>
cisco(config-pmap-c)#$00 conform-action transmit exceed-action transmit v
cisco(config-pmap-c)#$-action transmit exceed-action transmit violate-action ?
drop drop packet
The question only refers to a conform CIR of 320Kbps, no PIR is mentioned so are you just assuming this is a dual bucket?
