Exam 200-301 topic 1 question 322 discussion

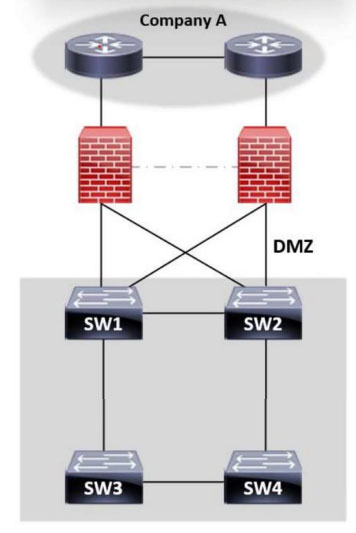

Switch 2 is primary. But in this context, that is to say when it fails, the primary is chosen between SW1, SW3 and SW4. Thus, SW3 becomes the root. Answer C is correct.

we need an admin here to check this bellabop, ruining answers for all users.

C is correct as SW2 is already primary, and when it fails, SW3 becomes root

Switch 1 is already root bridge, if it fails switch 3 will be root bridge so correct answer is C

C is correct 2nd lowest priority

the key : ((if the primary switch fails and all links are of equal speed?)) its mean wthe SW2 is the Primary and its fails, so the Primary now is SW3

C is correct answer

C is perfect after I carefully read the question

C is correct. SW2 is the primary Switch, so SW3 is the Backup.

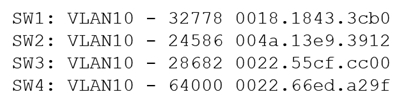

The wording for this question is important (if the primary switch fails). The bridge priority takes precedence over the MAC address. Switch 2 is the primary switch (it has the lowest number bridge priority). Switch 3 would be the backup (it has the second lowest number bridge priority). Answer is C.

It´s C

It's C. The bridge priority takes precedence over the MAC address. It's only used as a tie-breaker in the case that priorities are equal. This should not be so contentious.

Answer is correct

Lowest priority after the primary (SW2) is SW3

C is correct

To answer this question, we first have to identify which switch is the root of the network, based on the information in the image, the switch with the smallest BRID becomes the root, in this case SW2, since it is the root at the moment If it fails, there will be a new election following the same criteria, so SW3 becomes the root of the network. The correct answer is C, SW3.

Switch 3 make sure to read these questions carefully guys
