Exam 350-401 topic 1 question 564 discussion

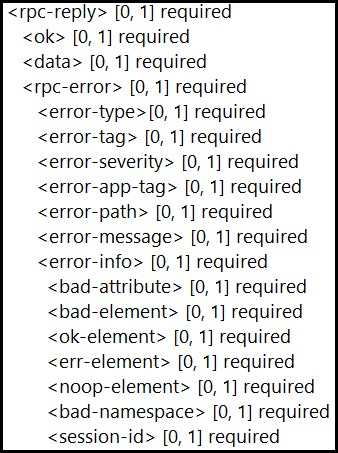

C. cisco#show netconf schema | section rpc-reply <rpc-reply> [0, 1] required <ok> [0, 1] required <data> [0, 1] required <rpc-error> [0, 1] required <error-type> [0, 1] required <error-tag> [0, 1] required <error-severity> [0, 1] required <error-app-tag> [0, 1] required <error-path> [0, 1] required <error-message> [0, 1] required <error-info> [0, 1] required <bad-attribute> [0, 1] required <bad-element> [0, 1] required <ok-element> [0, 1] required <err-element> [0, 1] required <noop-element> [0, 1] required <bad-namespace> [0, 1] required <session-id> [0, 1] required cisco#

The available options for the 'show netconf' command: {counters | session| schema} "The output of the 'show netconf schema' command displays the element structure for a NETCONF request and the resulting reply." We need to filter the output to show just the reply section. This is done by piping the previous output to the filtering command 'section rpc-reply.' https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/cns/configuration/xe-16-9/cns-xe-16-9-book/cns-netconf.pdf

Answer is C. cisco#show netconf schema | section rpc-reply <rpc-reply> [0, 1] required <ok> [0, 1] required <data> [0, 1] required <rpc-error> [0, 1] required <error-type> [0, 1] required <error-tag> [0, 1] required <error-severity> [0, 1] required <error-app-tag> [0, 1] required <error-path> [0, 1] required <error-message> [0, 1] required <error-info> [0, 1] required <bad-attribute> [0, 1] required <bad-element> [0, 1] required <ok-element> [0, 1] required <err-element> [0, 1] required <noop-element> [0, 1] required <bad-namespace> [0, 1] required <session-id> [0, 1] required

C is correct

router#show netconf ? counters <omitted> schema <omitted> session <omitted>

c. The output of the show netconf schema command displays the element structure for a NETCONF request and the resulting reply. This schema can be used to construct proper NETCONF requests and parse the resulting replies.

Given answer is correct.
