Exam 300-415 topic 1 question 88 discussion

Actual exam question from Cisco's 300-415
Question #: 88
Topic #: 1
[All 300-415 Questions]

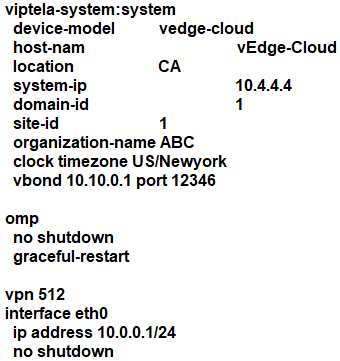

Refer to the exhibit. The network team must configure branch B WAN Edge device 103 to establish dynamic full-mesh IPsec tunnels between all colors with branches over MPLS and Internet circuits. The branch is configured with:

Which configuration meets the requirements?

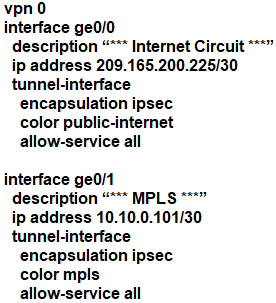

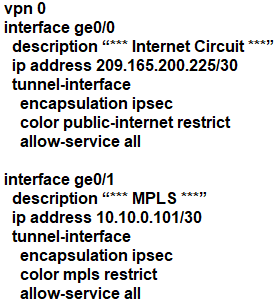

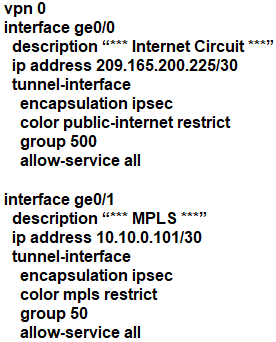

A.

B.

C.

D.

Show Suggested Answer Hide Answer
Suggested Answer: D
by phi5 at Sept. 16, 2022, 2 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
tester2478
Highly Voted 2 years, 9 months ago
When a TLOC is marked as restricted, a WAN edge route router will attempt to establish an overlay tunnel to a remote TLOC only via its transport interfaces marked with the same color How can you say D is correct if question states The network team must configure branch B WAN Edge device 103 to establish dynamic full-mesh IPsec tunnels between all colors with branches
upvoted 20 times
...
5c1f681
Highly Voted 1 year, 1 month ago
Correct answer is A
upvoted 7 times
...
BECAUSE
Most Recent 1 year, 4 months ago
why not B? There is no front door VRF assigned to MPLS on the answer A?
upvoted 1 times
Rosh8787
9 months, 1 week ago
because both interfaces should be under vpn0
upvoted 1 times
...
PureInertiaCopy
1 year, 4 months ago
It has the second transport interface in a service VPN. VPN 1
upvoted 1 times
BECAUSE
1 year, 3 months ago
ahh yes, i missed that thank you!
upvoted 1 times
...
...
...
Networkchamp87
1 year, 5 months ago
correct answer is A
upvoted 4 times
...
Clouddon
1 year, 9 months ago
A is technically correct
upvoted 1 times
...
AJMD
1 year, 10 months ago
Correct A
upvoted 3 times
...
jcms700
2 years ago
A is Correct because it does not have the word "restric" along tloc color name. Restric prevent to form IPsec Tunnels with different TLOC Colors
upvoted 2 times
...
johndoe22
2 years, 2 months ago
A coz between all colours, D if intra colors only.
upvoted 1 times
...
hamidreza0010
2 years, 2 months ago
Correct answer is A
upvoted 1 times
...
S__i__D
2 years, 10 months ago
There are no connections between the Internet and MPLS shown -> "restrict" will not affect the final data plane topology, but it will reduce the attempts to build tunnels between different colors. So I think D is correct.
upvoted 2 times
...
shoman
2 years, 10 months ago
correct Answer should be A
upvoted 3 times
...
phi5
2 years, 10 months ago
correct Answer should be A
upvoted 3 times
...
phi5
2 years, 10 months ago
Are sure its D, the question says, dynamic between all colours
upvoted 2 times
...
