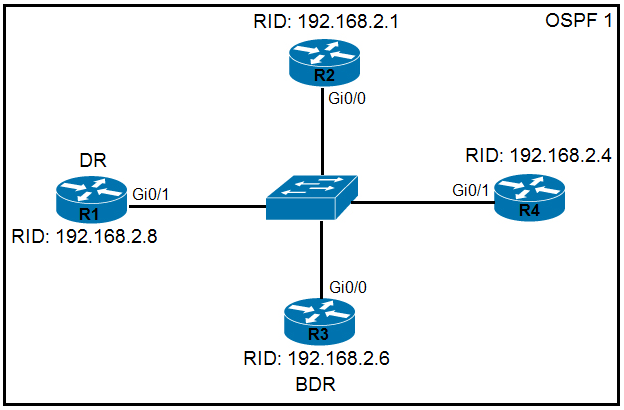

Refer to the exhibit. All routers in the network are configured. R2 must be the DR. After the engineer connected the devices, R1 was elected as the DR. Which command sequence must be configured on R2 to be elected as the DR in the network?
A.
R2(config)#intergface gi0/0 R2(config-if)#ip ospf priority 100
B.
R2(config)#router ospf 1 R2(config-router)#router-id 192.168.2.7
C.
R2(config)#router ospf 1 R2(config-router)#router-id 10.100.100.100
D.
R2(config)#intergface gi0/0 R2(config-if)#ip ospf priority 1
R1 was initially elected as the DR because they would have the same priority by default (1). The next step in the election process would be the highest IP address which R1 has over R2. Thus, setting the priority of R2 to 100 would elect it as DR. The highest priority wins for DR once it is within scope.
B. R2's new router ID 192.168.2.7 is still lower than R1's 192.168.2.8
C. R2's new router ID 10.100.100.100 is still lower than R1's 192.168.2.8
D. The OPSF priority is 1 by default, all routers have the same.
R1 is elected because the highest ID, so if change ID on R2 on higher it will be elected as DR.
so C is correct. Moreover there is a spelling mistake in A.
