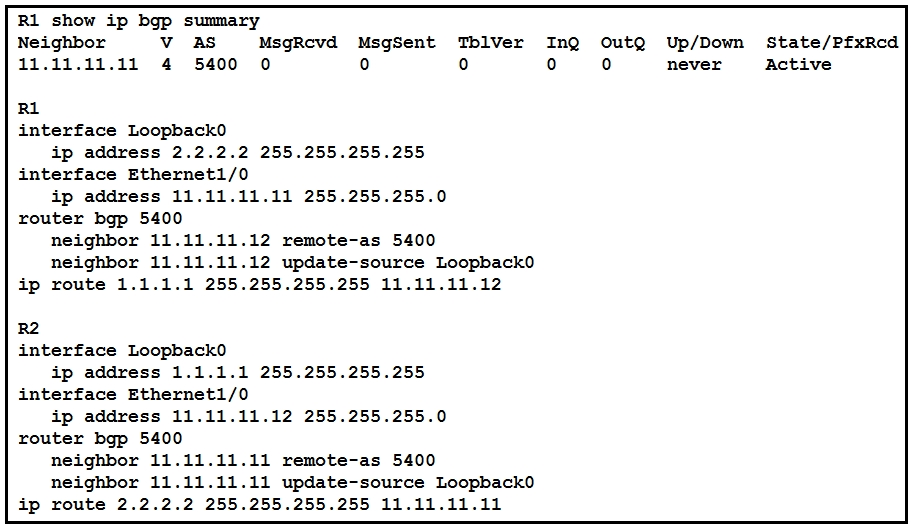

Refer to the exhibit. Router R1 is reporting that its BGP neighbor adjacency to router R2 is down, but its state is Active. Which configuration must be applied to routers R1 and R2 to fix the problem?
A. Is discarded cause IP 11.11.11.11 is already R1's eth 1/0 interface. Not a remote peer.
B. Is discarded cause IP 2.2.2.2 is already R1's loop 0 interface. Not a remote peer.
C. Is discarded cause there is no update source configured for an non-directed connected iBGP peer.
...Then, D. is correct.
The configuration should be like this:
R1:
router bgp 5400
neighbor 1.1.1.1 remote-as 5400
neighbor 1.1.1.1 update-source Loopback0
R2:
router bgp 5400
neighbor 2.2.2.2 remote-as 5400
neighbor 2.2.2.2 update-source Loopback0
upvoted 1 times
...
