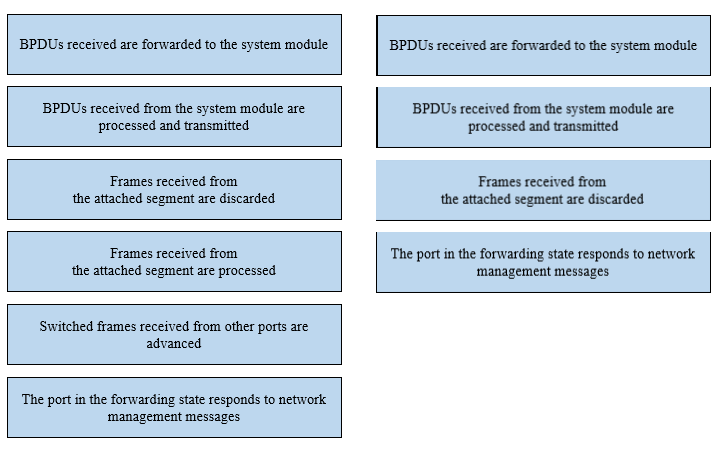

BPDU'S received forwarded to system module
BPDU'S received from system module are processed and transmitted
Switched frames from other ports are advanced
The port in the forwarding state responds to netwrok management messages
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n1_1/Cisco_n5k_layer2_config_gd_rel_503_N1_1_chapter9.html#con_1241832
Processes BPDUs received from the system module. """But it doesn't transmit"""".
Answer correct:
1- BPDUs received are forwarded to the system module.
4- Frames received from attached segment are processed.
5- Switched frames from other ports are advanced.
6- Port in the forwarding state responds to network mngmt messages.
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n1_1/Cisco_n5k_layer2_config_gd_rel_503_N1_1_chapter9.html#con_1241832
This is the correct answer with explanation and reference.
See also this from Q182 comments
According to https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n1_1/Cisco_n5k_layer2_config_gd_rel_503_N1_1_chapter9.html
Correct options are:
1. BPDUs received are forwarded to the system module.
2. Frames received from the attached segment are processed.
3. Switched frames received from other ports are advanced.
4. The port in the forwarding state responds to network management messages.
Wrong options are:
5. BPDUs received from the system module are processed and transmitted.
(explanation: "transmitted" is not in rapid PVST - just PVST only)
6. Frames received from the attached segment are discarded.
(explanation: "discarded" is in Blocking, Learning, Disabled states)
The switched frames are not automatically advanced. Instead they are processes, meaning either they are advanced or discarded depending on the configuration of the rapid pvst.
A LAN port in the forwarding state forwards frames. The LAN port enters the forwarding state from the learning state.
A LAN port in the forwarding state performs as follows:
Forwards frames received from the attached segment.
Forwards frames switched from another port for forwarding.
Incorporates the end station location information into its address database.
Receives BPDUs and directs them to the system module.
Processes BPDUs received from the system module.
Receives and responds to network management messages.
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n1_1/Cisco_n5k_layer2_config_gd_rel_503_N1_1_chapter9.html#con_1241832
aswers given are incorrect
BPDUs received are forwarded to the system module.
Frames received from the attached segment are processed.
Switched frames received from other ports are advanced.
The port in the forwarding state responds to network management messages.
Configuring Rapid PVST+ - Cisco
"...
Port States
...
Forwarding State
A LAN port in the forwarding state forwards frames. The LAN port enters the forwarding state from the learning state.
A LAN port in the forwarding state performs as follows:
Forwards frames received from the attached segment.
Forwards frames switched from another port for forwarding.
Incorporates the end station location information into its address database.
Receives BPDUs and directs them to the system module.
Processes BPDUs received from the system module.
Receives and responds to network management messages.
..."
A LAN port in the forwarding state performs as follows:
Forwards frames received from the attached segment.
Forwards frames switched from another port for forwarding.
Incorporates the end station location information into its address database.
Receives BPDUs and directs them to the system module.
Processes BPDUs received from the system module.
Receives and responds to network management messages.
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/nexus5000/sw/layer2/503_n1_1/Cisco_n5k_layer2_config_gd_rel_503_N1_1_chapter9.html#con_1241832
A port in the forwarding state performs as follows:
•Forwards frames that are received from the attached segment
•Forwards frames that are switched from another port for forwarding
•Incorporates station location information into its address database
•Receives BPDUs and directs them to the system module
•Processes BPDUs that are received from the system module
•Receives and responds to network management messages
https://www.cisco.com/c/en/us/td/docs/switches/lan/catalyst4000/8-2glx/configuration/guide/spantree.html#wp1174176
Switched frames from other ports are advanced.
BPDUs received are forwarded to the sys module.
Frames received from attached segment are processed.
Port in the forwarding state responds to network mngmt messages.
