Exam 200-301 topic 1 question 132 discussion

Actual exam question from Cisco's 200-301
Question #: 132
Topic #: 1
[All 200-301 Questions]

DRAG DROP -

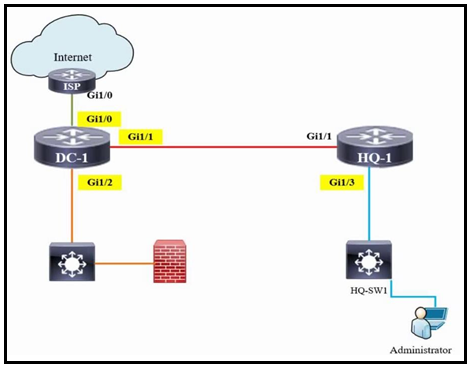

Refer to the exhibit. The IP address configurations must be completed on the DC-1 and HQ-1 routers based on these requirements:
✑ DC-1 Gi1/0 must be the last usable address on a /30
✑ DC-1 Gi1/1 must be the first usable address on a /29
✑ DC-1 Gi1/2 must be the last usable address on a /28
✑ HQ-1 Gi1/3 must be the last usable address on a /29

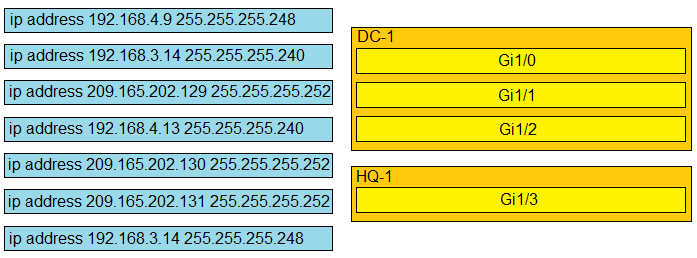

Drag and drop the commands from the left onto the destination interfaces on the right. Not all commands are used.
Select and Place:

Show Suggested Answer Hide Answer
Suggested Answer:
by [deleted] at Sept. 26, 2022, 3:32 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Customexit
Highly Voted 2 years, 6 months ago
Broadcast: odd Network: even 1st usable: odd last usable: even
upvoted 70 times
jamesgavin
2 years ago
This is the best answer here. This way you can resolve the question very fast without doing all the math, and save time.
upvoted 9 times
...
HippoMonarch
1 year, 8 months ago
Really appreciate!!! It's really a magic method.
upvoted 6 times
...
NICE_ANSWERS
1 year, 11 months ago
Please, what's the significance of this coded info
upvoted 2 times
elixirwell
12 months ago
Check whether the last digit in the IP address is odd or even
upvoted 1 times
...
...
...
FiranmitMegersa
Most Recent 10 months, 3 weeks ago
Given answer is correc
upvoted 3 times
...
C0tt0nking
11 months, 3 weeks ago
Gi1/1 & Gi1/3 are on the same subnet 255.255.255.248
upvoted 1 times
mlody85
4 months, 1 week ago
But on different devices :)
upvoted 1 times
...
...
nemostis
11 months, 3 weeks ago
Answer given is correct. Just take time and do it on paper
upvoted 2 times
...
[Removed]
1 year, 1 month ago
given answers are correct
upvoted 4 times
...
AbdullahMohammad251
1 year, 5 months ago
/28 SM should 255.255.255.240 Last usable address of the network 192.168.3.0/28 is 192.168.3.14 (192.168.3.0-192.168.3.15) /29 SM should be 255.255.255.248 The first usable address of the network 192.168.4.8/29 is 192.168.4.9(192.168.4.8-192.168.4.15) The last usable address of the network 192.168.3.8/29 is 192.168.3.14(192.168.3.8-192.168.3.15) /30 SM should be 255.255.255.252 The last octet of the network ID should be a multiple of 4 since every sub-network will have 4 IPs Network with network ID 209.165.202.128 (209.165.202.128-209.265.202.131) Last usable address 209.165.202.131
upvoted 2 times
16BitRun
1 year, 5 months ago
Correction: For Network with network ID 209.165.202.128 (209.165.202.128-209.265.202.131) The Last usable address should be 209.165.202.130.
upvoted 4 times
16BitRun
1 year, 5 months ago
209.165.202.131 is the Broadcast address.
upvoted 3 times
...
AbdullahMohammad251
1 year, 4 months ago
Yes, you're right, thank you!
upvoted 1 times
...
...
...
picho707
1 year, 8 months ago
I think the question should have read => HQ-1 Gi1/1 must be the last usable address on a /29 instead of HQ-1 Gi1/3. There are options from the selections to make the two switches non-overlapping.
upvoted 1 times
picho707
1 year, 8 months ago
I meant to say: I think the question should have read => HQ-1 Gi1/1 must be the last usable address on a /29 instead of HQ-1 Gi1/3. There are "NO" options from the selections to make the two switches non-overlapping.
upvoted 1 times
...
...
MelbourneJin
1 year, 10 months ago
G1/2 and G1/3 have the same IP address. Is that okay???
upvoted 2 times
7d040c6
9 months, 1 week ago
Yes, as they are internal to each LAN, connected by routers. NAT is required for these hosts to connect.
upvoted 1 times
...
...
Request7108
2 years, 4 months ago
If this question appears on the exam, I will likely skip it because of the time required to do the math. If possible, I would save it to the end to attempt only if I have extra time.
upvoted 3 times
UnbornD9
2 years, 1 month ago
It's something I'm trying to understand: you CAN skip it and review it in a second time? Someone know the answer?
upvoted 1 times
beerbisceps1
2 years, 1 month ago
I think once you skip and click next you can't go back
upvoted 4 times
...
16BitRun
1 year, 5 months ago
I know someone who recently took the CCNA Exam and told me you can't go back to a previous question or flag it for review later unlike CompTIA Exams.
upvoted 1 times
...
...
...
GigaGremlin
2 years, 6 months ago
Sorry, for the confusion,... just figured out, that I had a little miscalculation with the /30 .252 Network Address is 209.165.202.128 so 130 will be fine. But I guess that's intended to be...
upvoted 1 times
...
GigaGremlin
2 years, 6 months ago
IMHO someone should correct the 1st Questinon from "DC-1 Gi1/0 must be the last usable address on a /30" to this Q & A "DC-1 Gi1/0 must be the first usable address on a /30" then you can choose IP-Address 209.165.202.131 255.255.255.252, otherwise it simply doesn't make sense to me...
upvoted 2 times
...
F103
2 years, 7 months ago
Key word is "last usable address/ first usable addrss", check all possible subnet addresses then find if that is the last or first.
upvoted 1 times
...
[Removed]
2 years, 7 months ago
can someone help to explain how the answers were get? I'm confused.
upvoted 1 times
netzwork
2 years, 7 months ago
/30 means the subnet will be .252 hosts will go in groups of 4 /29 means subnet will be .248 hosts will go in groups of 8 /28 means subnet will be .240 hosts will go in groups of 16 Now if you need to see how to get first host, last host and broadcast addresses, I recommend you study that separately. To practice those exercises, go here: https://www.subnetting.net/Subnetting.aspx?mode=practice
upvoted 4 times
...
...
