Exam 350-401 topic 1 question 547 discussion

Actual exam question from Cisco's 350-401
Question #: 547
Topic #: 1
[All 350-401 Questions]

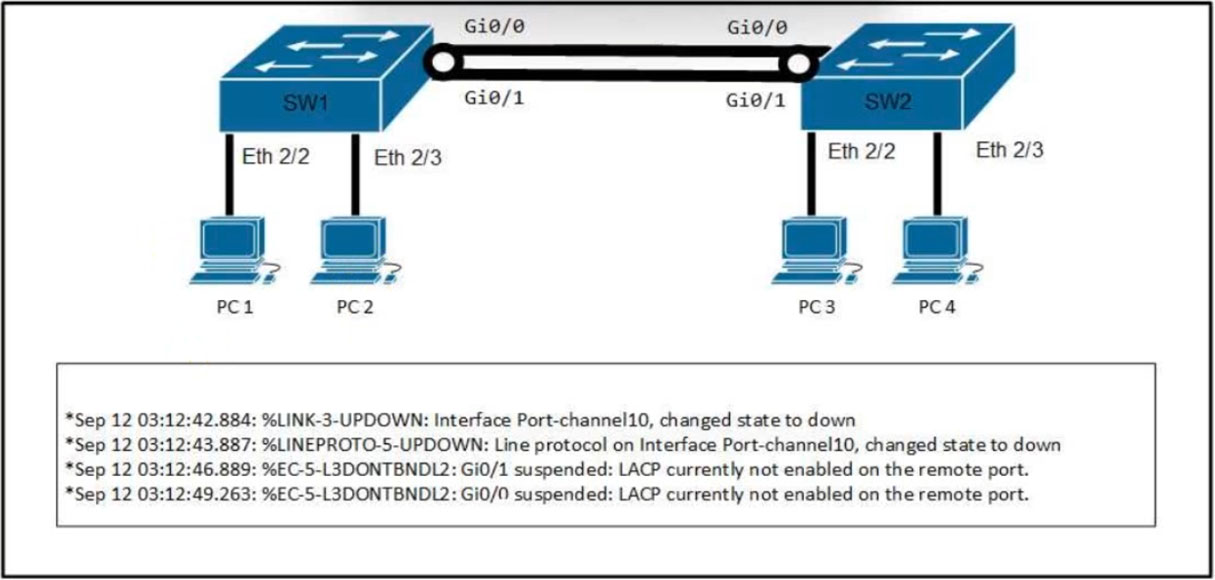

Refer to the exhibit. A network engineer troubleshoots an issue with the port channel between SW1 and SW2. Which command resolves the issue?

  • A. SW2(config-if)#switchport mode trunk
  • B. SW1(config-if)#channel-group 10 mode active
  • C. SW1(config-if)#channel-group 10 mode desirable
  • D. SW2(config-if)#channel-group 10 mode on
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
by shubhambala at Sept. 28, 2022, 2:18 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
[Removed]
6 months, 2 weeks ago
Selected Answer: B
B is correct
upvoted 1 times
...
CCNPWILL
1 year, 1 month ago
B is correct. LACP active on both sides all 4 ports.
upvoted 1 times
...
nushadu
1 year, 12 months ago
I cathed this log, it looks "B" is good but i need peer to check it anyway sw1#show logging | include LACP *Dec 12 19:14:33.154: %EC-5-L3DONTBNDL2: Et0/0 suspended: LACP currently not enabled on the remote port. sw1#sh running-config interface port-channel 1 Building configuration... Current configuration : 66 bytes ! interface Port-channel1 ip address 10.0.0.2 255.255.255.0 end sw1#sh running-config int e0/0 Building configuration... Current configuration : 110 bytes ! interface Ethernet0/0 description "UPLINK" no switchport no ip address channel-group 1 mode active end sw1#
upvoted 1 times
...
bora4motion
2 years ago
Selected Answer: B
B is correct for LACP.
upvoted 1 times
...
Dataset
2 years ago
the trunkig protocol is LACP...so the only option are "active" or "passive" Regards
upvoted 2 times
jackr76
1 year, 8 months ago
Active, Passive or On
upvoted 1 times
...
...
melkij17
2 years, 2 months ago
LACP protocol - so Active or Passive
upvoted 1 times
...
shubhambala
2 years, 2 months ago
why not C?
upvoted 3 times
Dataset
2 years ago
Hi, because "desirable" is for use with PAGP (Cisco propietary protocl) Regards
upvoted 2 times
Symirnian
1 year, 9 months ago
But if the other switch is understood working in PAGP as here, shouldn't we solve the issue by changing ourself to PAGP? As C does.?
upvoted 3 times
byallmeans
1 year, 7 months ago
it's not saying the other end is running PAgP, it's just saying it's not running LACP. Might not be running neither for what we know.
upvoted 3 times
...
...
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
