Exam 200-301 topic 1 question 276 discussion

Actual exam question from Cisco's 200-301

Question #: 276
Topic #: 1

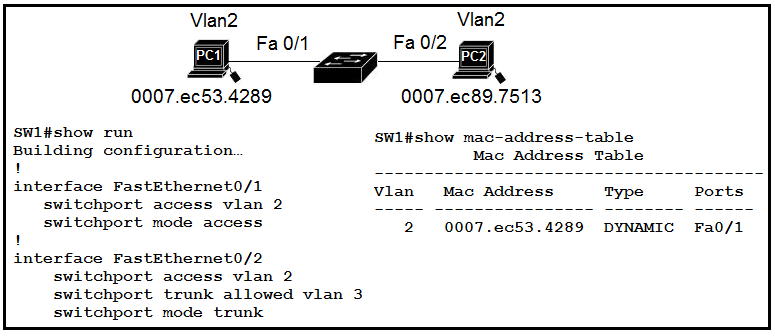

Refer to the exhibit. An engineer has started to configure replacement switch SW1. To verify part of the configuration, the engineer issued the commands as shown and noticed that the entry for PC2 is missing. Which change must be applied to SW1 so that PC1 and PC2 communicate normally?

A. SW1(config)#interface fa0/2 SW1(config-if)#no switchport access vlan 2 SW1(config-if)#no switchport trunk allowed vlan 3 SW1(config-if)#switchport trunk allowed vlan 2
B. SW1(config)#interface fa0/2 SW1(config-if)#no switchport access vlan 2 SW1(config-if)#switchport trunk native vlan 2 SW1(config-if)#switchport trunk allowed vlan 3
C. SW1(config)#interface fa0/2 SW1(config-if)#no switchport mode trunk SW1(config-if)#no switchport trunk allowed vlan 3 SW1(config-if)#switchport mode access
D. SW1(config)#interface fa0/1 SW1(config-if)#no switchport access vlan 2 SW1(config-if)#switchport access vlan 3 SW1(config-if)#switchport trunk allowed vlan 2

Show Suggested Answer

Suggested Answer: C 🗳️

by Goh0503 at Oct. 2, 2022, 8:21 a.m.

Comments

Submit Cancel

Goh0503

Highly Voted 2 years, 8 months ago

Answer C access port – a port that can be assigned to a single VLAN. This type of interface is configured on switch ports that are connected to end devices such as workstations, printers, or access points. trunk port – a port that is connected to another switch. This type of interface can carry traffic of multiple VLANs, thus enabling you to extend VLANs across your entire network. Frames are tagged by assigning a VLAN ID to each frame as they traverse between switches. https://study-ccna.com/access-and-trunk-ports/

upvoted 13 times

...

Bhrino

Highly Voted 2 years, 1 month ago

Selected Answer: C

C is correct there’s no need to use trunk ports due the fact they are all in the same vlan and c just removes all the trunking commands and adds the last access port one

upvoted 5 times

...

[Removed]

Most Recent 1 year, 3 months ago

Selected Answer: C

C is correct

upvoted 1 times

...

ananinamia

1 year, 10 months ago

But where vlan3 comes what is relation with this question?

upvoted 4 times

c9957e3

11 months, 1 week ago

11 months late, but for anybody else wondering, VLAN3 was configured as shown in the run config, though there is no VLAN 3 connected to the interface.

upvoted 1 times

...

iMo7ed

2 years, 4 months ago

Selected Answer: C

C is correct

upvoted 2 times

...
