Exam 200-301 topic 1 question 153 discussion

Actual exam question from Cisco's 200-301
Question #: 153
Topic #: 1
[All 200-301 Questions]

DRAG DROP -
Refer to the exhibit.

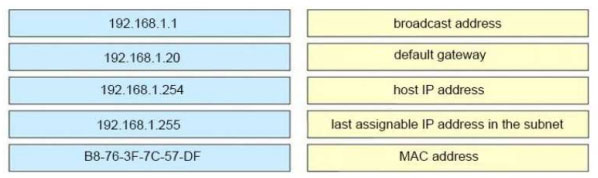

An engineer is tasked with verifying network configuration parameters on a client workstation to report back to the team lead. Drag and drop the node identifiers from the left onto the network parameters on the right.
Select and Place:

Show Suggested Answer Hide Answer

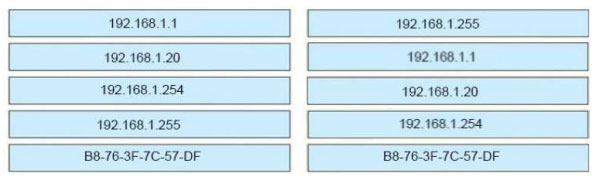

Suggested Answer:
by Fermento at Oct. 7, 2022, 10:59 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
[Removed]
Highly Voted 2 years, 5 months ago
broadcast address = 192.168.1.255 default gateway = 192.168.1.1 host IP address = 192.168.1.20 last assignable IP address in the subnet = 192.168.1.254 MAC address = B8-75-3F-7C-57-DF
upvoted 14 times
...
[Removed]
Highly Voted 2 years, 6 months ago
Simplest Question Ever😍😍
upvoted 10 times
...
932cf6a
Most Recent 1 year, 1 month ago
how you determined the host one
upvoted 1 times
PanKracy
9 months, 3 weeks ago
its because of /24 bit mask, where hosts ip addresses can be from 192.168.1.1-192.168.1.254. Because 192.168.1.0 is the network address, and .255 is broadcast address
upvoted 1 times
...
...
[Removed]
1 year, 1 month ago
given answers are correct
upvoted 1 times
...
NICE_ANSWERS
2 years ago
Please, how do you know this is the broadcast address and the default gateway?
upvoted 1 times
manaoming
1 year, 11 months ago
The broadcast address is 1 address before the next subnet's network address. With a subnet mask of 255.255.255.0, network addresses will be in the format of 192.168.1.0, 192.168.2.0, etc. Thus 192.168.1.255 is 1 address before the next subnet address of 192.168.2.0, making it a broadcast address. As for the default gateway, I guess Cisco blanked out the row names that state which address is the host address or the default gateway. I don't like that, but either way I remembered that <Preferred> is next to the host IP address in the Windows ipconfig command output. By process of elimination the other one is the default gateway.
upvoted 7 times
...
...
Fermento
2 years, 8 months ago
It's correct
upvoted 5 times
...
