Exam 200-105 topic 1 question 12 discussion

Actual exam question from Cisco's 200-105
Question #: 12
Topic #: 1
[All 200-105 Questions]

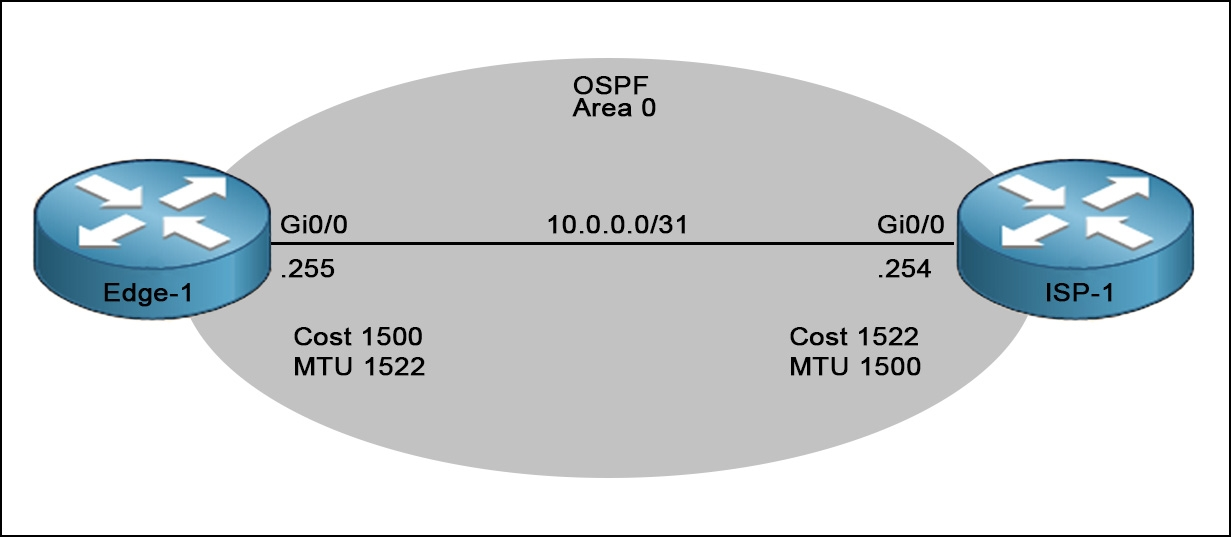

Refer to the exhibit.

Router edge-1 is unable to establish OSPF neighbor adjacency with router ISP-1. Which two configuration changes can you make on edge-1 to allow the two routers to establish adjacency? (Choose two.)

  • A. Set the subnet mask on edge-1 to 255.255.255.252.
  • B. Reduce the MTU on edge-1 to 1514.
  • C. Set the OSPF cost on edge-1 to 1522.
  • D. Reduce the MTU on edge-1 to 1500.
  • E. Configure the ip ospf mtu-ignore command on the edge-1 Gi0/0 interface.
Show Suggested Answer Hide Answer
Suggested Answer: DE 🗳️
by SirFrates24 at Nov. 20, 2019, 6:28 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
icdaniel
5 years, 3 months ago
The interface command ip ospf mtu-ignore disables this check of the MTU value in the OSPF DBD packets. Thus, use of this command allows the OSPF adjacency to reach the FULL state even though there is an interface MTU mismatch between two OSPF routers. To make the MTU match you could reduce the MTU on R1. /31 is valid on point to point connections as we see above. Cost values do not need to match.
upvoted 1 times
...
ehsar
5 years, 3 months ago
D and E are correct OSPF does not reach full adjacency when there is a mismatch in MTU However you configure an ignore command to allow mismatched interfaces to connect https://www.cisco.com/c/en/us/support/docs/ip/open-shortest-path-first-ospf/119384-technote-ospf-00.html
upvoted 1 times
...
SirFrates24
5 years, 6 months ago
a /31 doesn't give 2 valid host changing the subnet mask should be an answer
upvoted 4 times
JTA2020
5 years, 4 months ago
I don't think that it is shown at CCNA level but you can use a /31 address for point to point links. https://tools.ietf.org/html/rfc3021 https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/ipaddr_ipv4/configuration/xe-3s/asr903/ipv4-xe-3s-asr903-book/config-ipv4-addr.html
upvoted 1 times
...
pvalencia
5 years, 3 months ago
RFC 3021 defines it as a valid subnet for point to point links
upvoted 1 times
...
...
