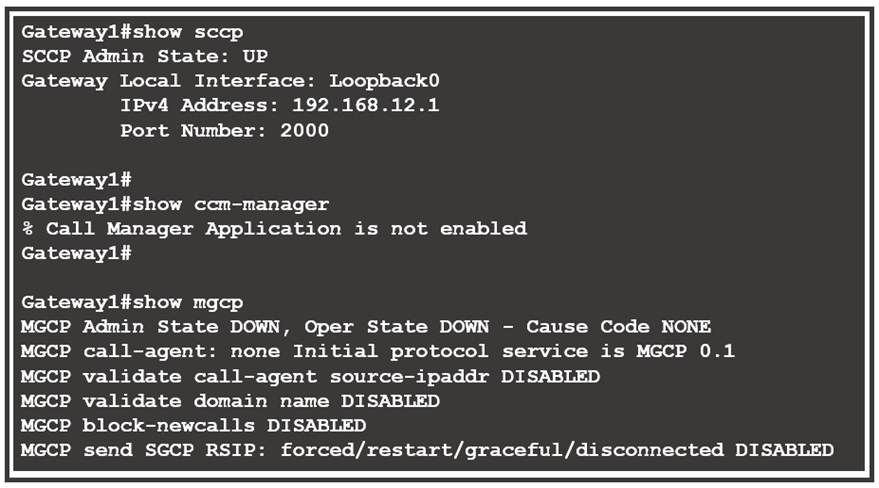

Refer to the exhibit. A collaboration engineer adds an analog gateway to a Cisco UCM cluster. The engineer chooses MGCP over SCCP as the gateway protocol. Which two actions ensure that the gateway registers? (Choose two.)
A.
Delete and re-add the gateway configuration in Cisco UCM.
B.
Enter "mgcp" on the gateway in configuration mode.
C.
Enter "no sccp" on the gateway in configuration mode.
D.
Enter "ccm-manager config" on the gateway in configuration mode.
E.
Enter "ccm-manager mgcp" on the gateway in configuration mode.
Yo are right, the minimum MGCP configuration you need is the following:
(config)#mgcp
(config)#mgcp call-agent [ip-address|hostname] [port] service-type mgcp [version 0.1 | 1.0 | rfc3435-1.0]
(config)#ccm-manager mgcp
And (optional) if you want that the Gateway download XML config from CUCM (MGCP packages, RTP settings, and fax settings), you can use:
(config)#ccm-manager config server {ip-address | dns-name}
(config)#ccm-manager config
So, answers are B. and E.
Reference: "Cisco Voice Gateways and Gatekeepers", Cisco Press. Chapter 2: Media Gateway Control Protocol.
B and E correct:
https://www.cisco.com/en/US/docs/ios/12_3t/voice/command/reference/vrht_c4_ps5207_TSD_Products_Command_Reference_Chapter.html#wp1072910
upvoted 1 times
...
