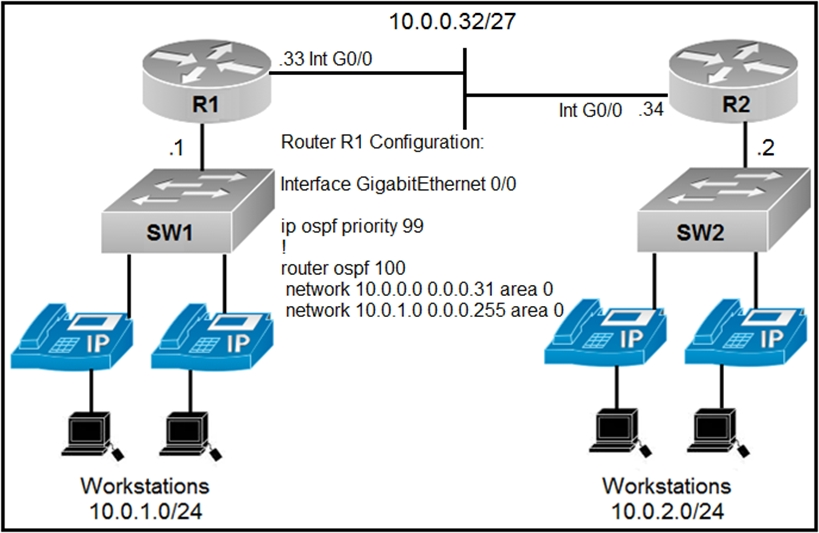

Refer to the exhibit. An engineer must configure router R2 so it is elected as the DR on the WAN subnet. Which command sequence must be configured?

  • A. interface gigabitethernet0/0 ip address 10.0.0.34 255.255.255.248 ip ospf priority 0
  • B. interface gigabitethernet0/0 ip address 10.0.0.34 255.255.255.224 ip ospf priority 100
  • C. interface gigabitethernet0/0 ip address 10.0.1.1 255.255.255.0 ip ospf priority 255
  • D. interface gigabitethernet0/0 ip address 10.0.1.1 255.255.255.224 ip ospf priority 98
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
by Goena at Jan. 1, 2023, 6:35 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
dorian81
7 months, 3 weeks ago
Selected Answer: B
It is me or the network configuration on R1 is full of shit ?
upvoted 2 times
...
[Removed]
8 months ago
Selected Answer: B
B is correct
upvoted 1 times
...
[Removed]
1 year, 2 months ago
you can answer this question even if you don't know the OSPF
upvoted 1 times
...
shumps
1 year, 2 months ago
please pay close attention to details 10.0.0.34
upvoted 1 times
...
[Removed]
1 year, 6 months ago
why not c?
upvoted 4 times
dropspablo
1 year, 6 months ago
Because of the IP Address configuration, it needs to be indented from the 10.0.0.32/27 network (host 10.0.0.33 to 10.0.0.62 - Broadcast 10.0.0.63). Prefix 27 minus 32 = 5 left over used for host (1=2 - 2=4 - 3=8 - 4=16 - 5=32), i.e. we have a range of 32 hosts available in each subnet: Subnet 10.0.0.0 - 10.0.0.32 - 10.0.0.64 - 10.0.0.96 - 10.0.0.128 - 10.0.0.160 - 10.0.0.192 - 10.0.0.224.
upvoted 7 times
...
...
Goena
1 year, 10 months ago
Selected Answer: B
Answer B is correct: Network on G0/0 is 10.0.0.32/27 ===> 10.0.0.34 255.255.255.224 with priority higher then default (1) , 100
upvoted 3 times
IFBBPROSALCEDO
1 year, 4 months ago
How did you get 10.0.0.34? I can if the answer is 10.0.0.33 but not 34. Thank you for your time in advance.
upvoted 1 times
IFBBPROSALCEDO
1 year, 4 months ago
Nevermind, I just saw the .34 next to R2!! I really need to pay attention to detail!
upvoted 3 times
...
...
...
