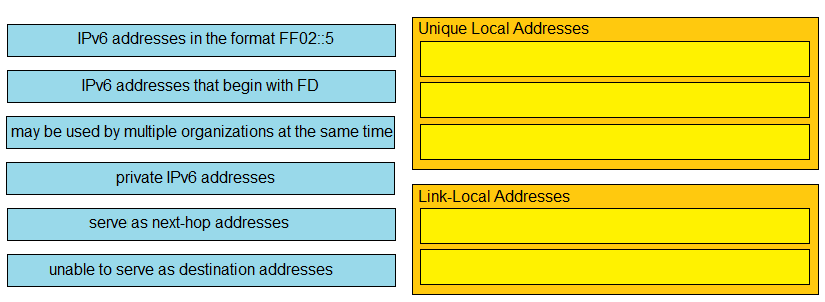

DRAG DROP - Drag and drop the IPv6 address descriptions from the left onto the IPv6 address types on the right. Not all options are used. Select and Place:
Unique Local Addresses
- Private IP Addresses
-Serve as next-hop addresses
- may be used by multiple organizations at the same time
Link-Local Addresses
- unable to serve as destination addresses
- IPv6 addresses that begin with FD ( This is because FD in binary hex format is 1111 1101, and link local format id FC00::/7, considering first bit of FD is actually coming as FC)
Another typical Cisco style poorly designed question that tests word-by-word memorisation instead of networking skills.
Link-Local is used for next-hop address on a local link, which is correct, but Unique Local can be used as a next-hop address, too.
Private IPv6 addresses include Unique Local, but also include Link-Local. Would anyone argue that a Link-Local address is a public address? Not a private address?
Link-Local definitely can be used as destination addresses. Otherwise, how does it serve as a next-hop address? How does it receive packets?
Shame on you, Cisco. Wait to be replaced by other vendors and vendor-neutral certifications.
Yes they can. Link local addresses can be assigned either manually or automatically. You can definitely assign an identical link local address to multiple networks. This question is faulty, just like many Cisco questions.
https://www.ciscopress.com/articles/article.asp?p=2803866&seqNum=4 : "IPv6 routing table entries populated from dynamic routing protocols use the IPv6 link-local address as the next-hop address."

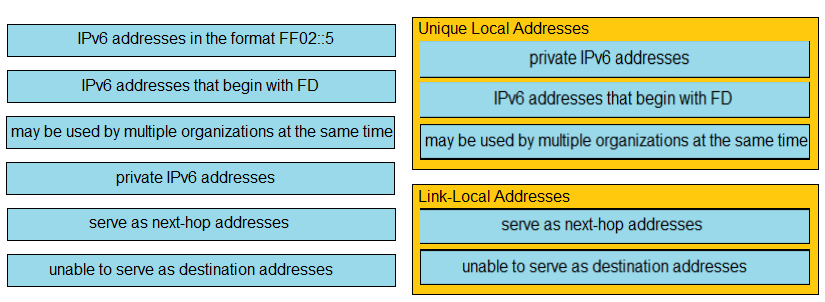

●Unique Local Addresses：
IPv6 addresses that begin with FD,
may be used by multiple organizations at the same time,
private IPv6 addresses
●Link-Local Addresses：
serve as next-hop addresses,
can't serve as a source or destination address.
https://en.wikipedia.org/wiki/Link-local_address
https://www.ciscopress.com/articles/article.asp?p=2803866&seqNum=5
Because is not routable, so when you said destination it happens to be in the same network space, so that communication occurrs in layer 2 rather than layer 3, so it was not destine to an IP.
ff02 is a multicast address, check the documentation
upvoted 5 times
...
...
