Exam 200-301 topic 1 question 460 discussion

Actual exam question from Cisco's 200-301

Question #: 460
Topic #: 1

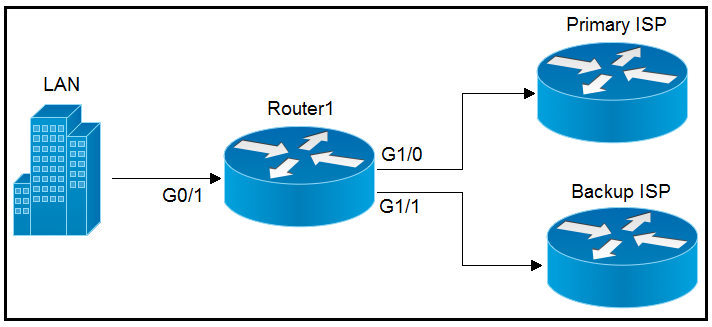

Refer to the exhibit. A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down. Which primary route configuration must be used?

A. ip route 0.0.0.0 0.0.0.0 192.168.0.2
B. ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernet1/0
C. ip route 0.0.0.0 0.0.0.0 192.168.0.2 floating
D. ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked

Show Suggested Answer

Suggested Answer: A 🗳️

by Naghini at Jan. 12, 2023, 9:06 a.m.

Comments

Submit Cancel

Dutch012

Highly Voted 1 year, 10 months ago

Selected Answer: A

Not B, A is the answer. a fully specified route is written like that dest IP | interface | next-hop

upvoted 17 times

Ceruzka

1 year, 9 months ago

good point. First comes the outgoing intf than comes next hop-IP, not the other way !!

upvoted 1 times

...

learntstuff

Highly Voted 1 year, 5 months ago

Tricky. They lead with floating static route then at last second ask about primary route

upvoted 13 times

...

riteshm42

Most Recent 3 months, 3 weeks ago

Selected Answer: A

C & D are incorrect because there is no keyword for floating and tracked, B is incorrect also because Exit interface is G0/1 not G1/0. So we left with A only which is correct command. Although they have not mentioned any Ip details. This option was solely selected because it is the only correct command out of 4

upvoted 1 times

...

[Removed]

9 months, 1 week ago

Selected Answer: A

A is correct

upvoted 2 times

...

squagmire

10 months ago

Selected Answer: B

I am so confused with you guys, B's command is correct, you don't need to specify the next-hop ip when specifying the interface. Sure you have both options: 1) 'ip route [ip] [mask] [interface]' 2) 'ip route [ip] [mask] [interface] [next-hop ip]' So I would go with B

upvoted 3 times

...

shaney67

1 year, 3 months ago

answer should be B, how do you know 192.168.0.2 is the primary router?

upvoted 1 times

[Removed]

1 year, 3 months ago

we dont know but we know that B is incorrect command

upvoted 3 times

...

cengizcihan

1 year, 6 months ago

Selected Answer: B

questinon asks "which PRIMARY route configuration must be used? So, it should be B.

upvoted 1 times

...

TechJ

1 year, 6 months ago

100% A, if you really want B to be the correct answer, it needs to be: ip route 0.0.0.0 0.0.0.0 GigabitEthernet1/0 192.168.0.2 not: ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernet1/0 notice the different?

upvoted 6 times

...

dropspablo

1 year, 7 months ago

Selected Answer: A

(answer B is wrong) Unlike IPv6, in IPv4 static routing configuration, for the next hop you either enter an IP Address of the neighboring interface or your local interface, BUT NEVER BOTH. Example: R1(config)# ip route 192.168.20.0 255.255.255.0 10.12.0.2 Or R1(config)# ip route 192.168.20.0 255.255.255.0 g0/0

upvoted 4 times

...
