Exam 200-301 topic 1 question 317 discussion

Actual exam question from Cisco's 200-301
Question #: 317
Topic #: 1
[All 200-301 Questions]

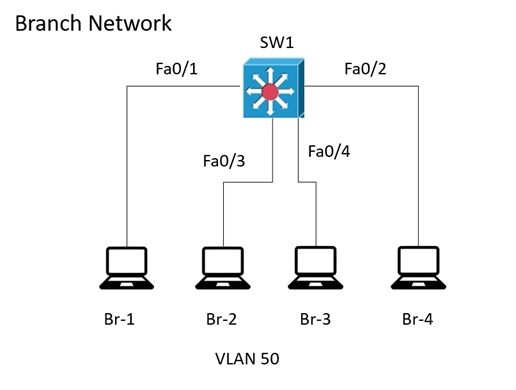

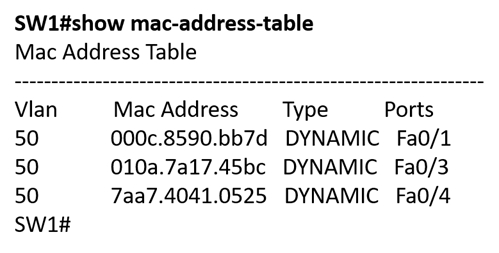

Refer to the exhibit. The entire MAC address table for SW1 is shown here:

What does SW1 do when Br-4 sends a frame for Br-2

  • A. It performs a lookup in the MAC address table for Br-4 and discards toe frame due to a missing entry.
  • B. It floods the frame out or all ports except on the port where Br-2 is connected.
  • C. It Inserts the source MAC address and port into the forwarding table and forwards the frame to Br-2.
  • D. It maps the Layer 2 MAC address for Fa0/3 to the Layer 3 IP address and towards the frame.
Show Suggested Answer Hide Answer
Suggested Answer: C 🗳️
by Sdiego at Jan. 18, 2023, 9:09 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Sdiego
Highly Voted 1 year, 9 months ago
Tricky! Exchanging interfaces IDs with Branch numbers, b careful!
upvoted 9 times
Rydaz
1 year, 6 months ago
dirty move
upvoted 3 times
...
...
[Removed]
Most Recent 7 months, 3 weeks ago
Selected Answer: C
C is correct
upvoted 4 times
...
ccnaguy
1 year, 1 month ago
what kind of garbage of a question is this...
upvoted 1 times
...
raul_kapone
1 year, 2 months ago
Selected Answer: C
Although the statement of alternative C doesn't explain all the process (because the switch will flood out the frame by all the ports, except by the incoming port - fa0/2), it is right, because it is somthing that happens. Tricky question like they say.
upvoted 1 times
...
HSong
1 year, 6 months ago
the question tricks.
upvoted 2 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
