Exam 350-501 topic 1 question 308 discussion

Actual exam question from Cisco's 350-501
Question #: 308
Topic #: 1
[All 350-501 Questions]

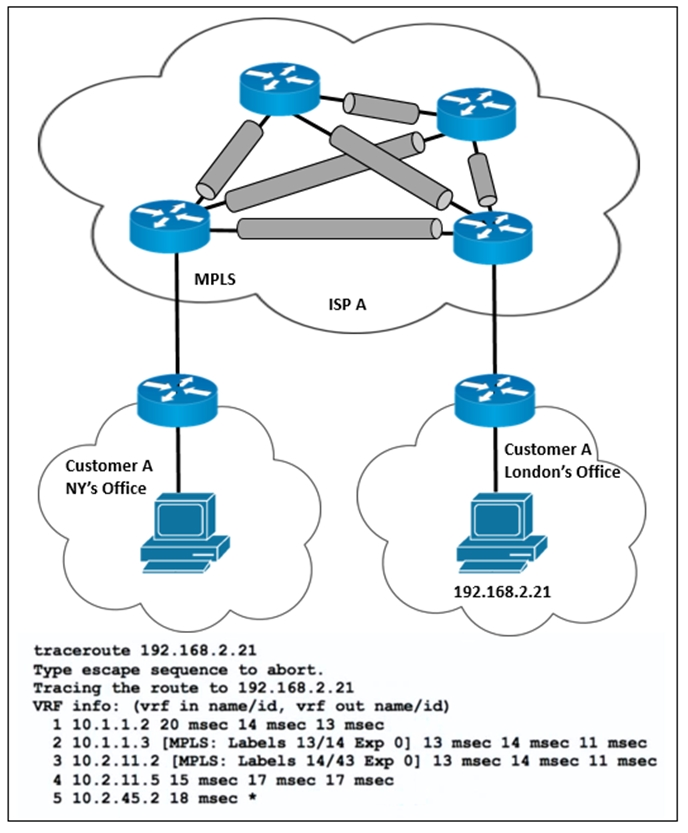

Refer to the exhibit. ISP A provides MPLS L3VPN service to customer A with BGP as the external routing protocol. Customer A has just opened a new branch office in London and requested the service provider to implement lossless service between its two offices. The LDP is enabled over the MPLS backbone and label exchange is working normally. Which action must the ISP engineering team take to enable the service?

  • A. Configure LDP and redistribute the route from EIGRP.
  • B. Configure BGP address family VPNv4.
  • C. Configure IGP and redistribute the route from BGP.
  • D. Configure IGP LDP synchronization
Show Suggested Answer Hide Answer
Suggested Answer: D 🗳️
by chst at Jan. 19, 2023, 6:06 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
sharon90
6 months, 1 week ago
Selected Answer: D
It's clearly D.
upvoted 1 times
...
rans3001
11 months ago
Selected Answer: D
The traceroute seems to be from the NY CPE. B is wrong: If would be a problem of BGP VPNv4 routes not exchanged, we would see only one hop responding in the traceroute (the NY PE). As long as we see the MPLS transport labels in the traceroute, then it means that BGP VPNv4 routes are exchanged between the PE routers, so traffic is trying to reach the London PE.
upvoted 1 times
...
HARDCCNP
1 year, 1 month ago
Selected Answer: B
D ? Ai é brincadeira. B está correta. Nova implantação de um novo cliente.
upvoted 1 times
dexcript
9 months, 1 week ago
DId you looked at traceroute output?? It's already working. It's clearly D.
upvoted 1 times
...
...
Martiian
1 year, 5 months ago
Selected Answer: D
Based on the trace route it seems that MPLS is broken somewhere as others suggested. We can also see that the 2 mpls trace hops do show VPN labels... how can this be if BGP was not active. I would have to go with D as well.
upvoted 1 times
...
cerifyme85
1 year, 7 months ago
Selected Answer: D
D is the correct answer, the question says lossless.. assuming in the event of an outage to LDP on an IGP link
upvoted 3 times
...
HeRock
1 year, 10 months ago
Without address-family vpnv4 configured on egress PE (Londdon) we would not have seen the vpn labels in the traceroute. I think D is correct. LSP is broken somewhere.
upvoted 2 times
...
JoostAtExamtopics
2 years, 1 month ago
They mention to provide 'lossless service' so with that maybe hinting to a feature that provides that within the MPLS backbone, being the IGP and LDP and thus synchronisation to prevent loss during convergence. I'd say D is correct but like many other questions it leaves so many variables out...
upvoted 3 times
...
apetrov
2 years, 2 months ago
Selected Answer: B
Additionally see the labels in the traceroute. The bottom label is not the same, which I think indicates that there is no L3VPN service, so no VPNv4 exchange
upvoted 1 times
...
1234512345
2 years, 2 months ago
Selected Answer: B
B is correct
upvoted 1 times
...
thejag
2 years, 2 months ago
B because: They are not using an IGP, so all questions about IGP must be wrong. It says they are using BGP as the external routing protocol. It is not necessary to use an IGP. The only answer left is B - Configure BGP address family VPNv4 Does that make sense?
upvoted 2 times
cerifyme85
1 year, 7 months ago
U cannot use LDP without IGP.. Dont think answer is B
upvoted 1 times
...
Martiian
1 year, 5 months ago
they are referring to the routing protocol between ISP and Customer, it is using BGP.. Interally the ISP is using IGP.
upvoted 2 times
...
...
DUsoo
2 years, 3 months ago
Selected Answer: B
B is correct
upvoted 3 times
...
wow152
2 years, 4 months ago
how D ? why not B? If a new customer or branch has been added there then it must have another VRF from CE-to-PE and redistribute it in BGP for VPNv4 AF.
upvoted 1 times
...
chst
2 years, 4 months ago
why is D? I think the correct is B
upvoted 2 times
nottoday2077
2 years, 4 months ago
Agree, would need to setup another L3VPN with the proper import/exports.
upvoted 1 times
...
...
Community vote distribution
A (35%)
C (25%)
B (20%)
