Exam 200-125 topic 1 question 132 discussion

Actual exam question from Cisco's 200-125

Question #: 132
Topic #: 1

Instructions:
- Enter IOS commands on the device to verify network operation and answer the multiple questions.
- THIS TASK DOES NOT REQUIRE REVICE CONFIGURATION.
- Click the device icon to gain access to the console device of the router. No console or enable passwords are required.
- To access the multiple-choice questions, click the numbered boxes on the left of the top panel.
- there are four multiple-choice questions with this task. Be sure to answer all four questions before clicking Next button.
Scenario:

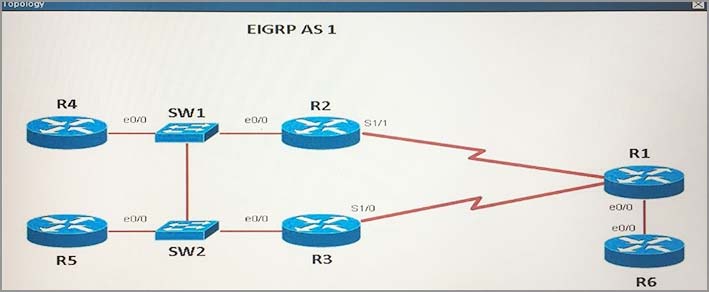

Refer to the topology. Your company has connected the routers R1, R2, and R3 with serial links. R2 and R3 are connected to the switches SW1 and SW2, respectively. SW1 and SW2 are also connected to the routers R4 and R5.
The EIGRP routing protocol is configured.
You are required to troubleshoot and resolve the EIGRP issues between the various routers.
Use the appropriate show commands to troubleshoot the issues.
The loopback interfaces on R4 with the IP addresses of 10.4.4.4/32, 10.4.4.5/32 and 10.4.4.6/32 are not appearing in the routing table of R5.
Why are the interfaces missing?

A. The interfaces are shutdown, so they are not being advertised.
B. R4 has been incorrectly configured to be in another AS, so it does not peer with R5.
C. Automatic summarization is enabled, so only the 10.0.0.0 network is displayed.
D. The loopback addresses haven’t been advertised, and the network command is missing on R4.

Show Suggested Answer

Suggested Answer: B 🗳️

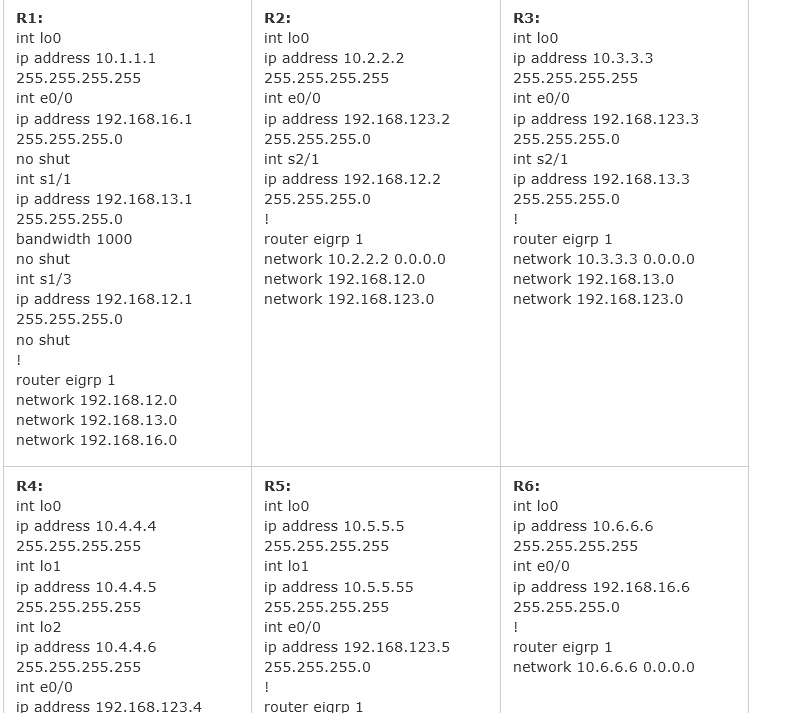

Relevant parts of the config shown below:

by bigfoot at Dec. 2, 2019, 9:35 p.m.

Comments

Submit Cancel

bigfoot

5 years, 6 months ago

Can something be done to show the running-config of R4 and R5 In full? At the moment it is being chopped off

upvoted 2 times

...
