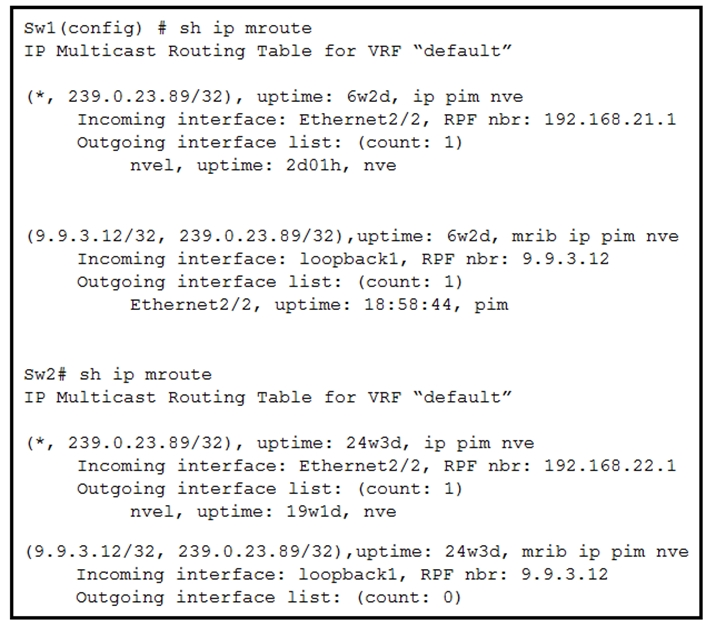

Refer to the exhibit. Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. What occurs in this scenario?
A.
Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
B.
Sw1 performs the VXLAN multicast encapsulation and decapsulation for all traffic associated with the VXLAN VNIs.
C.
Sw1 and Sw2 perform the VXLAN multicast encapsulation and decapsulation for all traffic associated with the VXLAN VNIs, depending on the hashing.
D.
Sw2 does not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.
Sw2 has no outgoing interface therefor all encapsulation and decapsulation will be performed by sw1
upvoted 2 times
...
This section is not available anymore. Please use the main Exam Page.300-615 Exam Questions
Log in to ExamTopics
Sign in:
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.
Upvoting a comment with a selected answer will also increase the vote count towards that answer by one.
So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.
jcv365
9 months, 4 weeks ago
