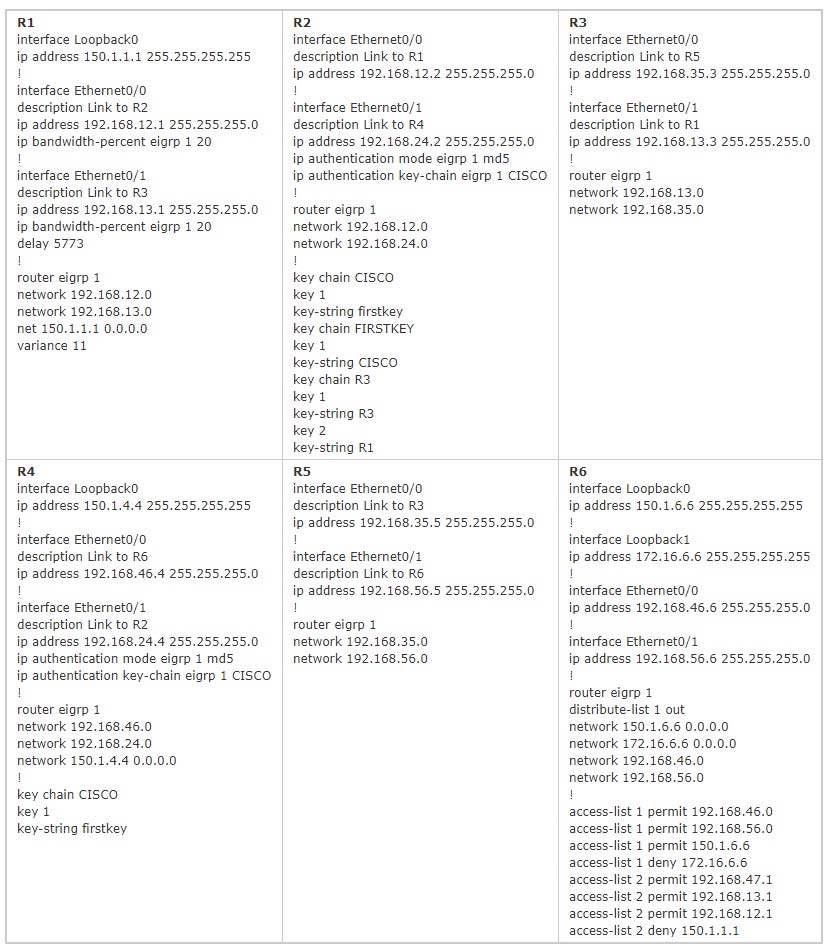

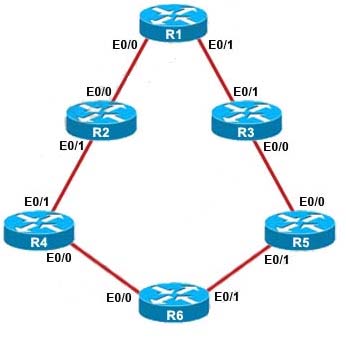

The configuration of R1 to R6 are posted below for your reference, useless lines are omitted: What is the advertised distance for the 192.168.46.0 network on R1?
Suggested Answer:C🗳️

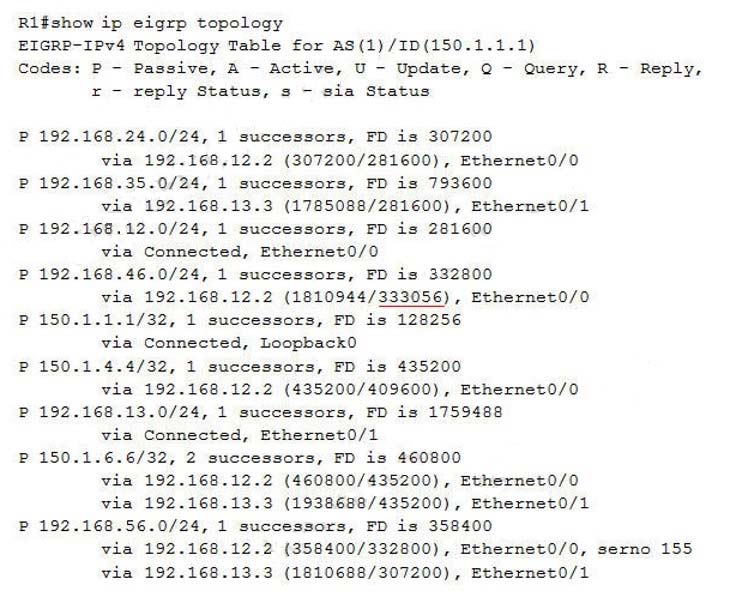

To check the advertised distance for a prefix we cannot use the "show ip route" command because it only shows the metric (also known as Feasible Distance). Therefore we have to use the "show ip eigrp topology" command: : Although the "show ip eigrp topology" does not work in the exam but the "show ip eigrp 1 topology" does work so please use this command instead and
Update - we will find out the advertised distance on R1. There are two parameters in the brackets of 192.168.46.0/24 prefix: (1810944/333056). The first one "1810944" is the Feasible Distance (FD) and the second "333056" is the Advertised Distance (AD) of that route -> A is correct. Just for your reference, this is the output of the "show ip route" command on R1: In the first line: D 192.168.46.0/24 [90/ 1810944] via 192.168.12.2, 00:10:01, Ethernet0/0 The first parameter "90" is the EIGRP Administrative Distance. The second parameter "1810944" is the metric of the route 192.168.46.0/24. R1 will use this metric to advertise this route to other routers but the question asks about "the advertised distance for the 192.168.46.0 network on R1" so we cannot use this command to find out the answer.
This section is not available anymore. Please use the main Exam Page.300-101 Exam Questions
Log in to ExamTopics
Sign in:
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.
Upvoting a comment with a selected answer will also increase the vote count towards that answer by one.
So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.
black_chechos
5 years, 6 months ago
