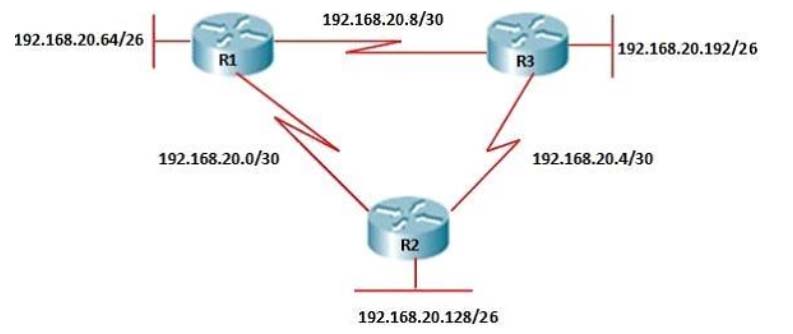

Refer to the exhibit. The company uses EIGRP as the routing protocol. What path will packets take from a host on 192.168.10.192/26 network to a host on the LAN attached to router R1?
A.
The path of the packets will be R3 to R2 to R1
B.
The path of the packets will be R3 to R1 to R2
C.
The path of the packets will be both R3 to R2 to R1 and R3 to R1
Suggested Answer:D🗳️

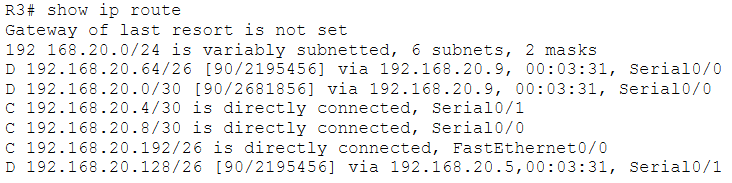

EIGRP Questions - http://www.9tut.net/icnd2/eigrp-questions http://www.orbitco-ccna-pastquestions.com/CCNA---EIGRP-Common-Question.php Looking at the output display above, the LAN attached to router R1 belongs to 192.168.20.64/26 subnet and learned this network via 192.168.20.9 which will be an IP address in 192.168.20.8/30 sub-network. This means that packets destined for192.168.20.64 will be routed from R3 to R1.
the question should be:
Refer to the exhibit. The company uses EIGRP as the routing protocol.
What path will packets take from a host on 192.168.20.192/26 network to a host on the LAN attached to router R1?
I don't understand this question? There is 192.168.10.X network here
upvoted 1 times
...
