Exam 300-420 topic 1 question 159 discussion

Actual exam question from Cisco's 300-420
Question #: 159
Topic #: 1
[All 300-420 Questions]

An engineer must use YANG with an XML representation to configure a Cisco IOS XE switch with these specifications:
IP address 10.10.10.10/27 configured on the interface GigabitEthernet2/1/0

✑ connectivity from a directly connected host 10.10.10.1/27
Which YANG data model set must the engineer choose?

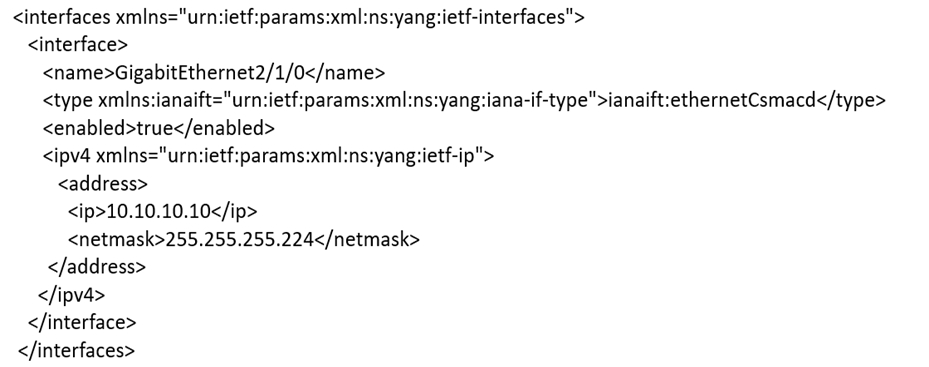

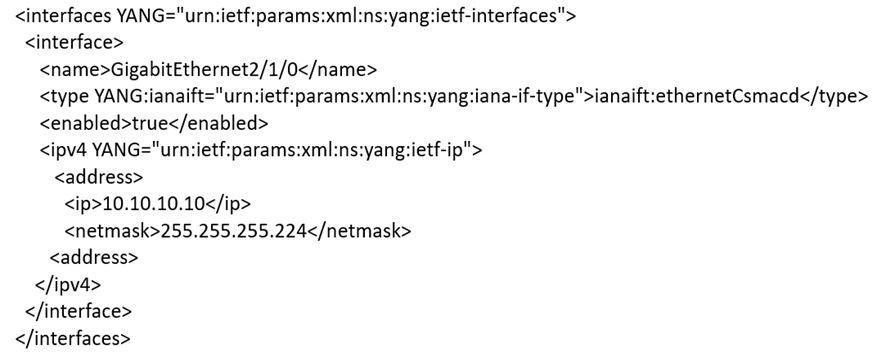

A.

B.

C.

D.

Show Suggested Answer Hide Answer
Suggested Answer: D
by XalaGyan at Feb. 3, 2023, 5:39 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
XalaGyan
Highly Voted 10 months ago
Watchout for answer A as the interface is left ENABLED=false, while is the same but enabled=true. Both will work but only D will leave the ip configured AND NO SHUT the interface
upvoted 6 times
...
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
A voting comment increases the vote count for the chosen answer by one.

Upvoting a comment with a selected answer will also increase the vote count towards that answer by one. So if you see a comment that you already agree with, you can upvote it instead of posting a new comment.
