Exam 300-425 topic 1 question 87 discussion

Actual exam question from Cisco's 300-425

Question #: 87
Topic #: 1

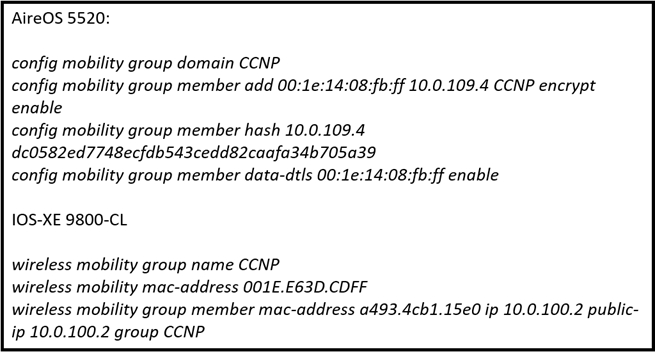

Refer to the exhibit. An engineer is about to establish a mobility peer connection between a Cisco Catalyst 9800-CL version 16.10.1e and Cisco AireOS 5520 version 8.8.120.0. The data path between the 9800-CL and AireOS 5520 is down, but its control path is up. Based on the configuration, what is the cause of the issue?

A. The certificate hash key is incorrect leading to data path down.
B. The data-link-encryption configuration is missing from the 9800-CL configuration.
C. Encrypted mobility is being used in the 5520 configuration leading to data path down.
D. CAPS is used to key in MAC address in the IOS_XE configuration leading to data path down.

Show Suggested Answer

Suggested Answer: B 🗳️

by Gab99 at Feb. 5, 2023, 11:47 a.m.

Comments

Submit Cancel

Gab99

Highly Voted 10 months, 2 weeks ago

Selected Answer: B

Answer is correct. A is not correct, if the hash key would be wrong, control path wouldnt come up in the first place. C is not correct. Secure Mobility is enabled by default on 9800 and therefore needs to be enabled on aireos. keyword is 'encrypt enable' on 2nd Line of AireOS konfig. D is not correct. case-sensitive doesnt matter. So B is the answer. Though on 9800 config there is an error: wireless mobility mac-address is with wrong mac. Should be 9800 own mac-address configured.

upvoted 5 times

Gab99

10 months, 2 weeks ago

Also see: https://content.cisco.com/chapter.sjs?uri=/searchable/chapter/content/dam/en/us/td/docs/wireless/controller/technotes/8-8/b_c9800_wireless_controller-aireos_ircm_dg.html.xml https://www.cisco.com/c/en/us/td/docs/wireless/controller/technotes/8-8/b_c9800_wireless_controller-aireos_ircm_dg.html

upvoted 3 times

...
