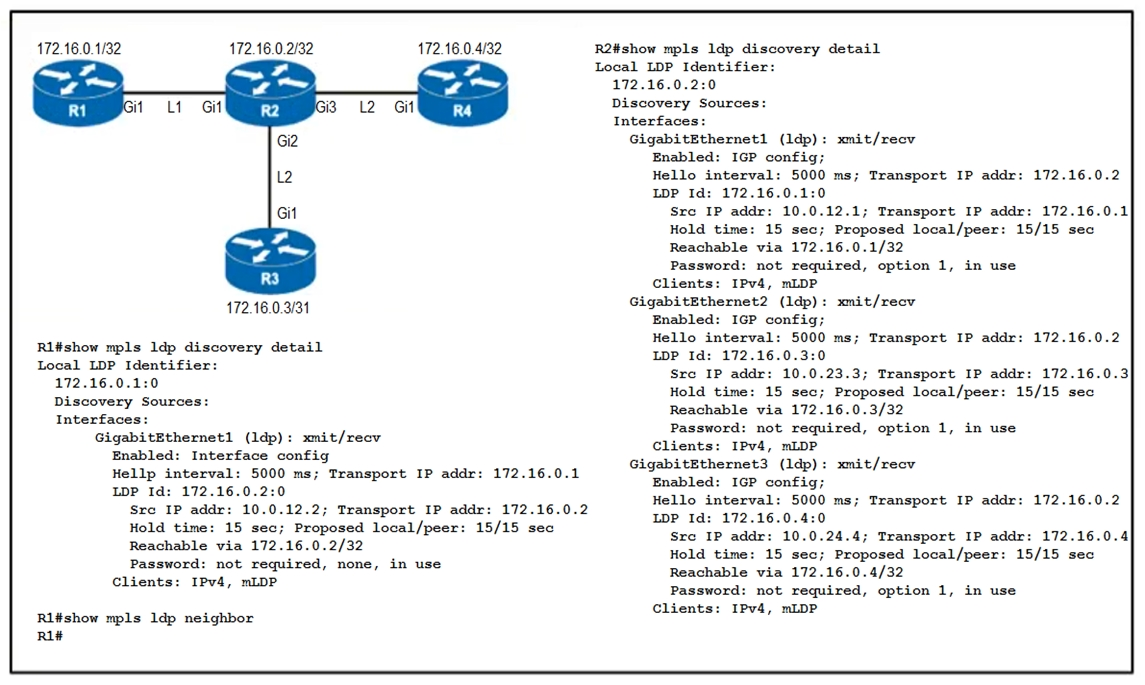

Refer to the exhibit. An engineer began to configure LDP between R1 and R2, but R1 and R2 cannot yet establish an LDP TCP connection. Which additional task must be completed to finish the implementation?
A.
Configure the mpls ldp neighbor 10.0.12.1 password command on R1
B.
Configure the mpls ldp neighbor 172.16.0.1 password command on R1
C.
Configure the no mpls ldp password option 1 command on R1
D.
Configure the no mpls ldp password option 1 command on R2
Further information:
https://www.cisco.com/c/en/us/td/docs/ios/12_2sb/12_2sba/feature/guide/sba_md5.html#wp1066043:~:text=all%20LDP%20neighbors.-,Verifying%20the%20LDP%20MD5%20Configuration,-Perform%20the%20following
I think D.
We see on R2 under the interfaces that it sees for R1 that R2 is configured for
"Password :not required, option 1, in use" meaning that R2 has a password configuration using option 1 configured but on R1 it has "non". To fix it you need to remove the password option 1 command on R2.
upvoted 3 times
...
