Exam 200-301 topic 1 question 490 discussion

Actual exam question from Cisco's 200-301

Question #: 490
Topic #: 1

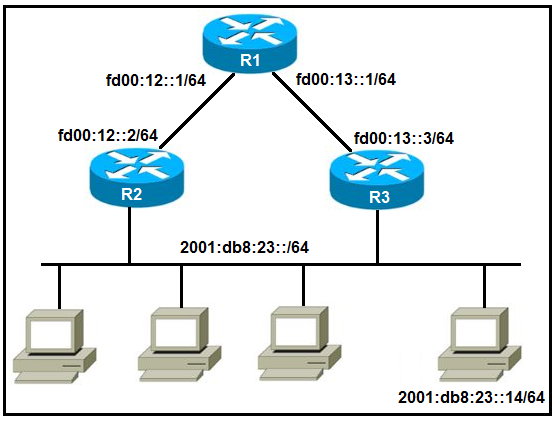

Refer to the exhibit. Which two commands, when configured on router R1, fulfill these requirements? (Choose two.)
✑ Packets toward the entire network 2001:db8:23::/64 must be forwarded through router R2.
Packets toward host 2001:db8:23::14 preferably must be forwarded through R3.

A. ipv6 route 2001:db8:23::/128 fd00:12::2
B. ipv6 route 2001:db8:23::14/128 fd00:13::3
C. ipv6 route 2001:db8:23::/64 fd00:12::2
D. ipv6 route 2001:db8:23::14/64 fd00:12::2 200
E. ipv6 route 2001:db8:23::14/64 fd00:12::2

Show Suggested Answer

Suggested Answer: BC 🗳️

by mustdoit at Feb. 15, 2023, 9:37 p.m.

Comments

Submit Cancel

[Removed]

7 months, 2 weeks ago

Selected Answer: BC

B & C are correct

upvoted 3 times

[Removed]

7 months, 2 weeks ago

/128 in ipv6 is like /32 in ipv4

upvoted 4 times

...

AbdullahMohammad251

11 months ago

Selected Answer: BC

Let's assume PC4 is of address 2001:db8:23::14/64 The host route forwards packets to a specific host and it has a Subnet mask of /128 Network route—The destination is a network. The subnet mask is less than 128 bits. B is a host route and it will be used to reach pc 4 using R3 as the next hop. C is a network route to reach the rest of the devices of the network (2001:db8:23::/64) using R2 as the next hop

upvoted 2 times

...
