Exam N10-006 topic 6 question 3 discussion

Actual exam question from CompTIA's N10-006
Question #: 3
Topic #: 6
[All N10-006 Questions]

SIMULATION -

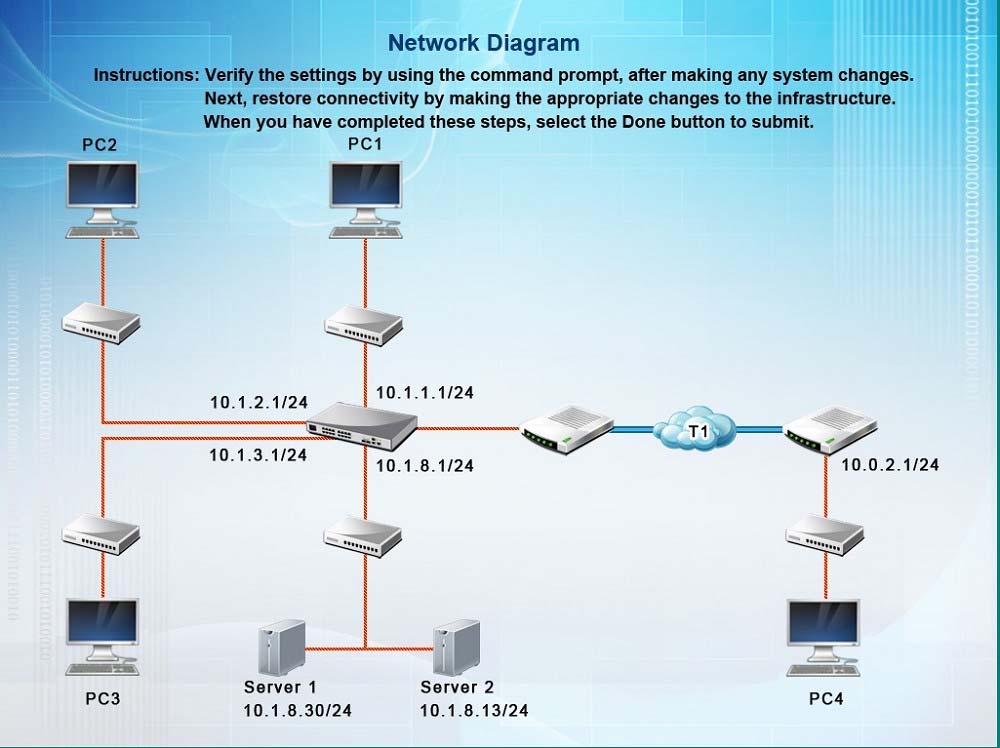

Alter recent changes to the pictured network, several users are unable to access the servers.

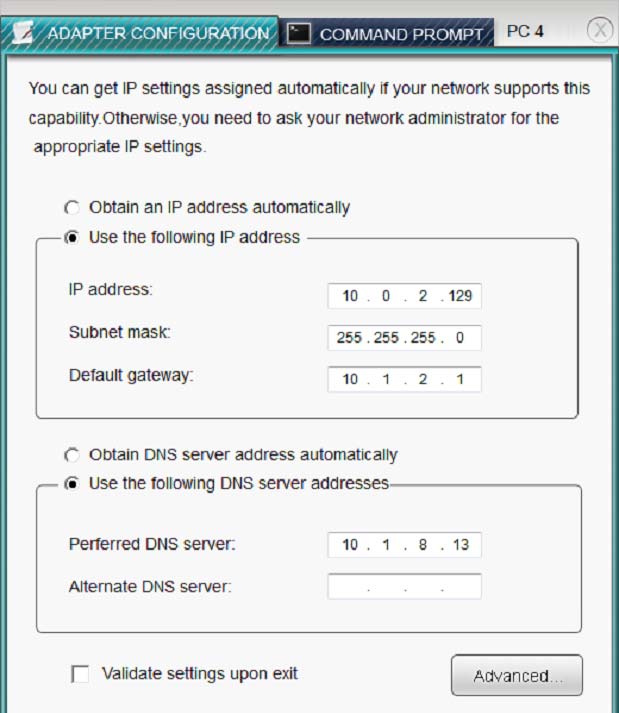

Only PC1, PC2, PC3, and PC4 are clickable and will give you access to the command prompt and the adapter configuration tabs.
Instructions: Verify the settings by using the command prompt, after making any system changes.
Next, restore connectivity by making the appropriate changes to the infrastructure. When you have completed these steps, select the Done button to submit.





Show Suggested Answer Hide Answer
Suggested Answer: Here is the solution below
On PC3, change the subnet mask to 255.255.255.0. When it is set to 255.255.255.128, then the PC with a .129 address will not be on the same subnet as the default gateway which is .1 On PC4, change the default gateway to 10.0.2.1. It has been incorrectly set as 10.1.2.1.
by [deleted] at April 2, 2025, 6:25 a.m.
