Exam N10-006 topic 6 question 11 discussion

Actual exam question from CompTIA's N10-006

Question #: 11
Topic #: 6

SIMULATION -

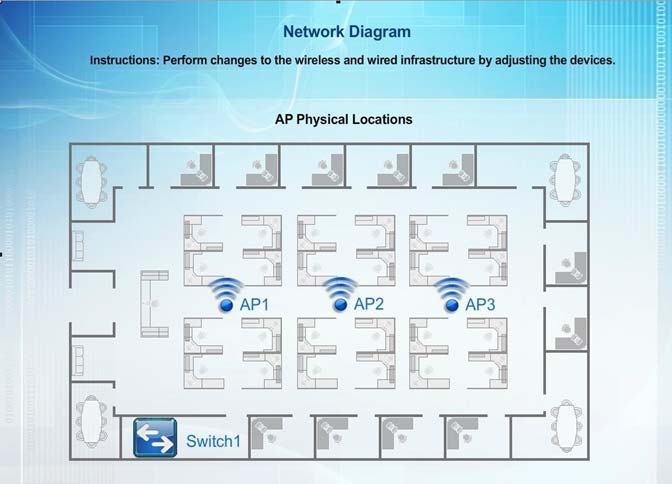

You have been tasked with setting up a wireless network in an office. The network will consist of 3 access points and a single switch. The network must meet the following parameters.
The SSIDs need to be configured as corpnet with a key of S3cr3t!
The wireless signals should not interfere with each other
The subnet the Access points and Switch are on should only support 30 devices maximum
The access Points should be configured to only support TKIP clients at a maximum speed
Instructions: Click on the devices to review their information and adjust the setting of the APs to meet the given requirements.

Show Suggested Answer

Suggested Answer: See explanation below
This simulation is still under construction. On the first exhibit, the layout should be as follows

Access Point Name AP1 -

IP Address 192.168.1.3 -

Gateway 192.168.1.2 -

SSID corpnet -

SSID Broadcast yes -

Mode G -

Channel 1 -

Speed Auto -

Duplex Auto -

WPA -
Passphrase S3cr3t!

Exhibit 2 as follows -

Access Point Name AP2 -

IP Address 192.168.1.4 -

Gateway 192.168.1.2 -

SSID corpnet -

SSID Broadcast yes -

Mode G -

Channel 6 -

Speed Auto -

Duplex Auto -

WPA -
Passphrase S3cr3t!

Exhibit 3 as follows -

Access Point Name AP3 -

IP Address 192.168.1.5 -

Gateway 192.168.1.2 -

SSID corpnet -

SSID Broadcast yes -

Mode G -

Channel 11 -

Speed Auto -

Duplex Auto -

WPA -
Passphrase S3cr3t!

by ekafasti at Oct. 10, 2021, 4:35 p.m.

Comments

Submit Cancel

ekafasti

3 years, 9 months ago

Why is speed being set to "auto?" The question explicitly says "the access points should be configured to ONLY support TKIP (AES) clients at a MAXIMUM speed. Setting to auto allows devices to connect at lower speeds. Any explanation?

upvoted 1 times

...
