Exam N10-007 topic 1 question 414 discussion

Actual exam question from CompTIA's N10-007

Question #: 414
Topic #: 1

DRAG DROP -
You have been tasked with testing a CAT5e cable. A summary of the test results can be found on the screen.

Instructions -
Step 1: Select the tool that was used to create the cable test results.
Step 2: Interpret the test results and select the option that explains the results. After you are done with your analysis, click the 'Submit' button.
Step 3: You have determined that the original crimp is faulty. Re-crimp the cable connector using the T568B cabling standard. Choose the correct cable for each pin in the connector by clicking on the pin and selecting a cable color.
If at any time you would like to bring back the initial state of the simulation, please click the Reset All button.

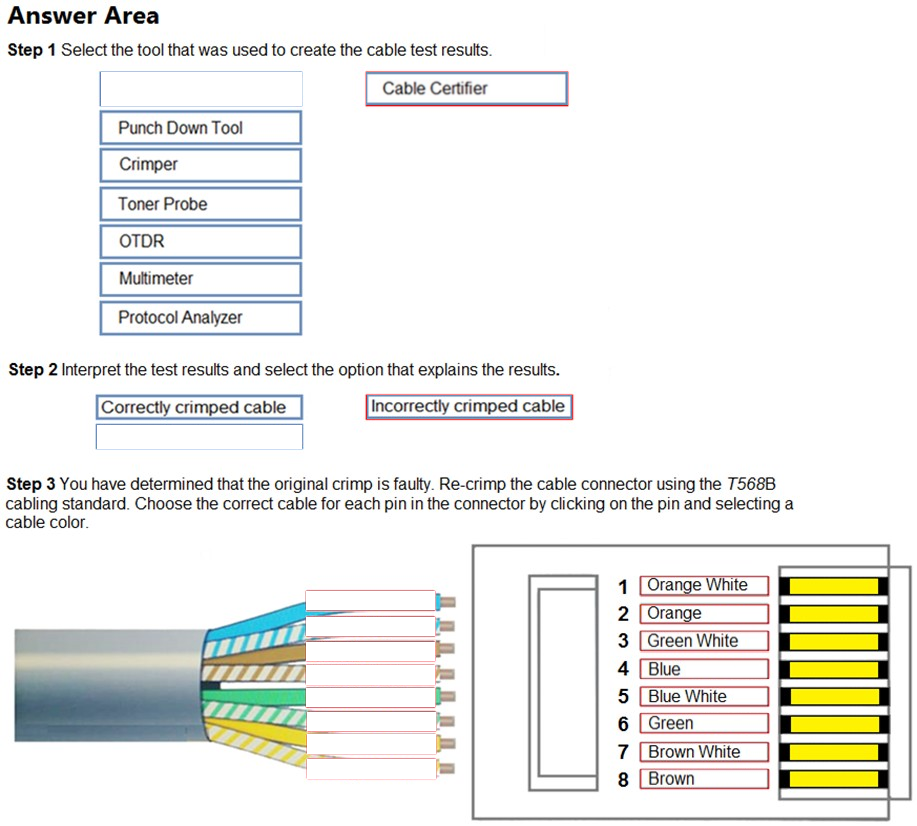

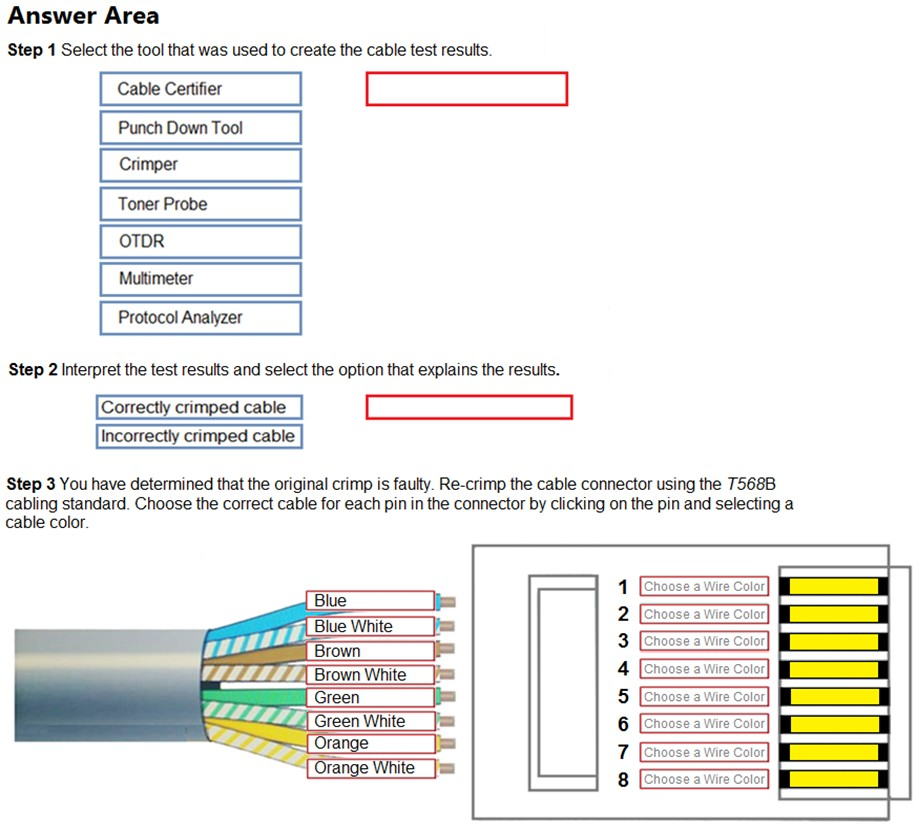

Select and Place:

Show Suggested Answer

Suggested Answer:

Reference:
https://www.comms-express.com/infozone/article/t568a-and-t568b/

by UDoIT2021 at Jan. 15, 2022, 7:09 p.m.

Comments

Submit Cancel

syaldram

3 years, 5 months ago

OBJ-5.2: Cable certifiers can provide a “pass” or “fail” status following the industry standards and can also show detailed information such as “open,” “short,” or the length of the cable.

upvoted 2 times

...

UDoIT2021

3 years, 5 months ago

The answer to Step 1 is wrong. It is not Cable Certifier, it is a Toner Probe. A Toner Probe produces a report on any opens, shorts, or miswires like the cable test result in the graphic. Cable certifiers are used to determine whether your network meets specific IOS or TIA standards, ie Cat 5e, Cat 6, Cat 7)

upvoted 2 times

Renfri

3 years, 5 months ago

You are thinking of a cable qualification test. Cable certifiers are also called TDRs (which shows breaks in the wire). Now take note that if it shows open/short and the length is still the same means it's crimped wrong. Source: I am a field technician at an ISP company.

upvoted 3 times

...

Renfri

3 years, 5 months ago

Also, Toner probes are used to check where the cable is connected to, not to detect how long a cable is or if there is a short. Stop misleading people.

upvoted 5 times

...

SpaceTaco312

3 years, 4 months ago

lol really? bc my fluke toner makes a beeping noise and that's about it. It can check for continuity but it does not generate anything remotely similar to this PBQ diagram.

upvoted 1 times

...
