Exam DNDNS-200 topic 1 question 31 discussion

Actual exam question from Dell's DNDNS-200
Question #: 31
Topic #: 1
[All DNDNS-200 Questions]

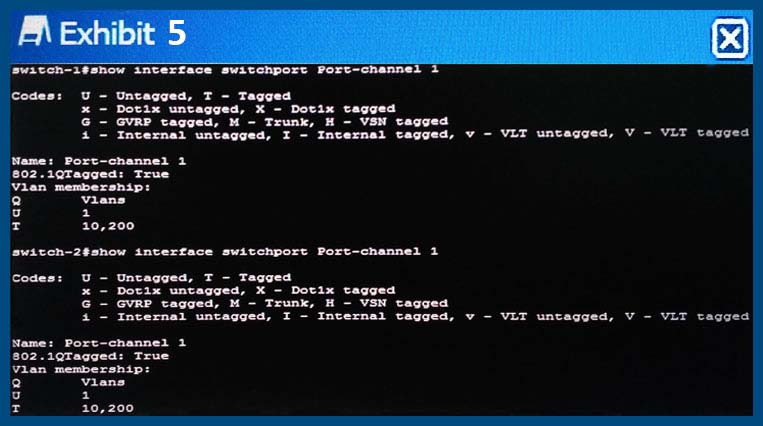

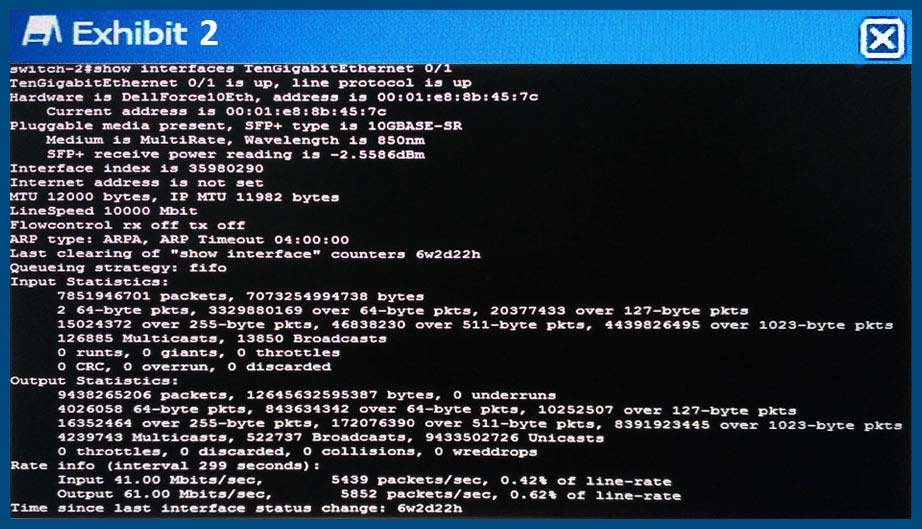

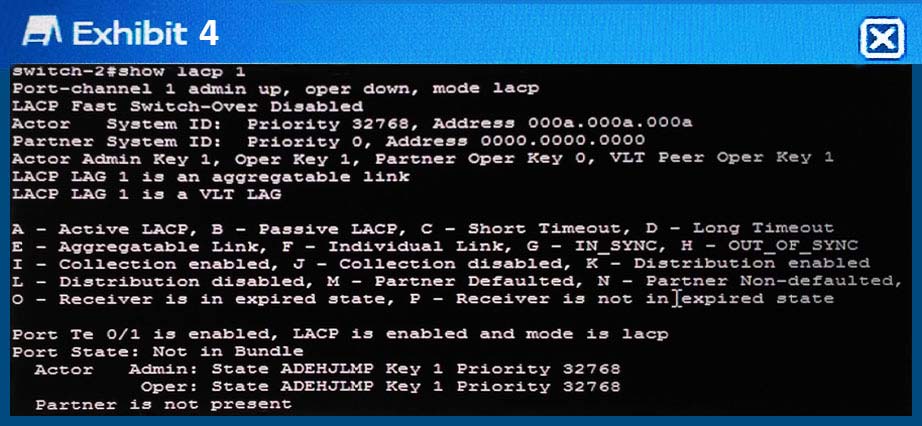

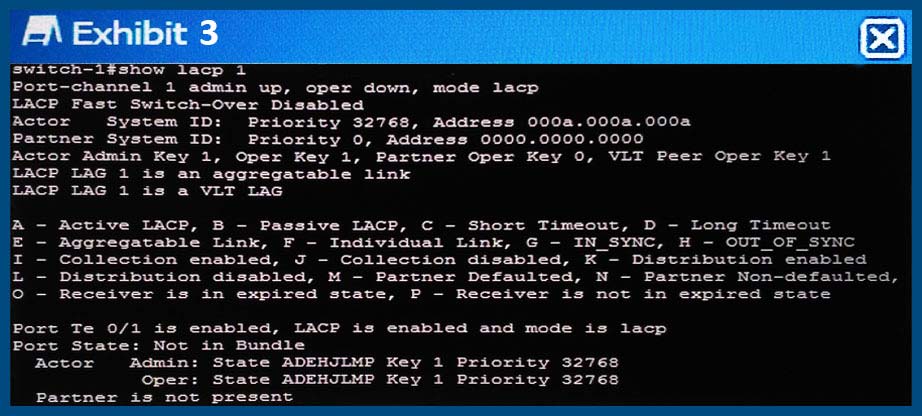

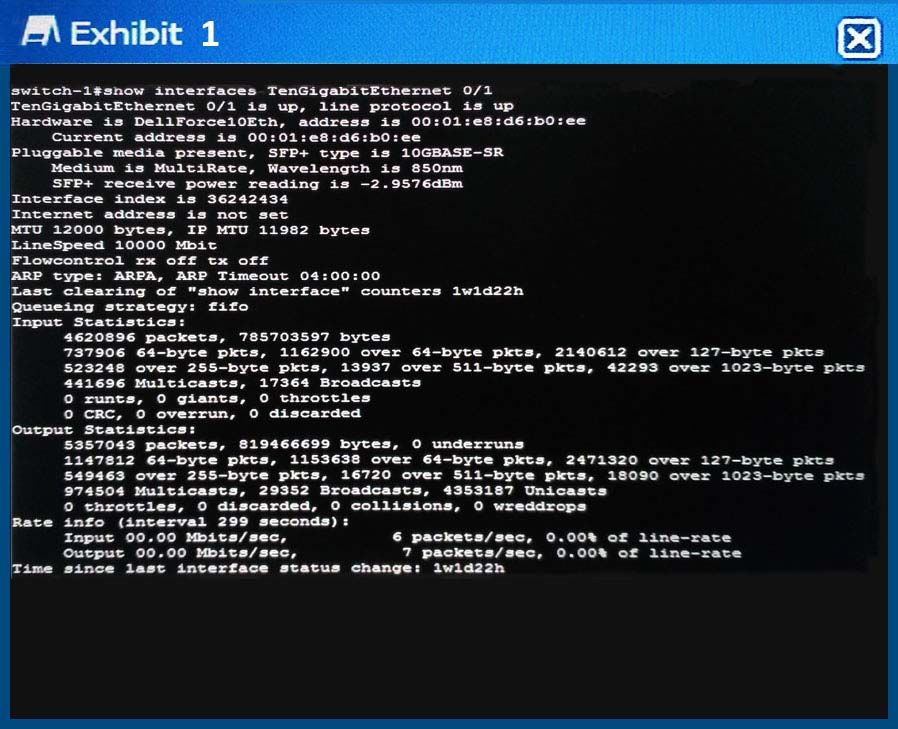

Refer to the exhibits.
An organization has a network with the following configuration:
* 2x C-Series chassis in a VLT
* Identical 10Gb line cards in each C-Series chassis
* A Hyper-V Server directly connected to Te 0/1 on each C-Series chassis
* A VLT Port-Channel connected to a two port switch independent team on the server used for vSwitch Virtual Machine traffic
The Server Admin reports connectivity issues to the VMs on the server.
* Virtual Machines cannot ping outside of the local Server and cannot be reached from the LAN.
* All Virtual Machines are connected to the same vSwitch.
* All Virtual Machines are able to ping each other internally.
* All Virtual Machines are tagged in VLAN 10.
* All Nics on the Hyper-V Server are up.
What is causing the ping loss?

  • A. VLANs are configured incorrectly between the VLT peers.
  • B. LACP is not configured on the server.
  • C. One of the VLT peers is using a lower bandwidth transceiver.
  • D. LACP is configured as passive in the VLT domain.
Show Suggested Answer Hide Answer
Suggested Answer: B 🗳️
by pavilu at April 5, 2025, 2:58 a.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
Currently there are no comments in this discussion, be the first to comment!
Community vote distribution
A (35%)
C (25%)
B (20%)
Other
Most Voted
