Exam NSE4_FGT-6.2 topic 1 question 27 discussion

Actual exam question from Fortinet's NSE4_FGT-6.2

Question #: 27
Topic #: 1

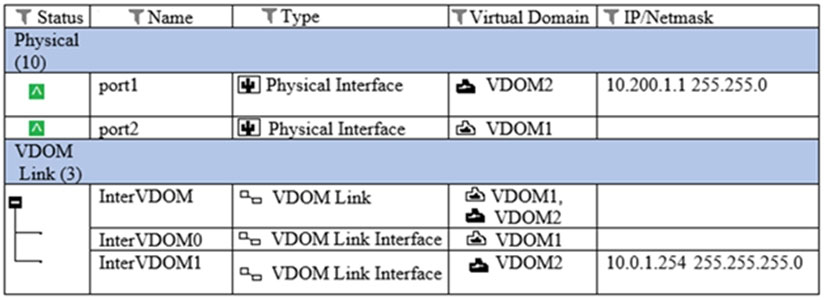

Refer to the exhibit.

The exhibit shows network configurations. VDOM1 is operating in transparent mode. VDOM2 is operating in NAT mode. There is an inter-VDOM link between both VDOMs. A client workstation with the IP address 10.0.1.10/24 is connected to port2. A web server with the IP address 10.200.1.2/24 is connected to port1.
Which two options must be included in the FortiGate configuration to route and allow connections from the client workstation to the web server? (Choose two.)

A. A static or dynamic route in VDOM2 with the subnet 10.0.1.0/24 as the destination.
B. A static or dynamic route in VDOM1 with the subnet 10.200.1.0/24 as the destination.
C. One firewall policy in VDOM1 with port2 as the source interface and InterVDOM0 as the destination interface.
D. One firewall policy in VDOM2 with InterVDOM1 as the source interface and port1 as the destination interface.

Show Suggested Answer

Suggested Answer: CD 🗳️

by pollyy at Feb. 17, 2021, 3:52 p.m.

Comments

Submit Cancel

AOC

4 years ago

Correcto c y d

upvoted 1 times

...

pollyy

4 years, 2 months ago

C & D are correct; A is not correct because dynamic routing is not possible between the Transparent and NAT VDOMs

upvoted 3 times

...
