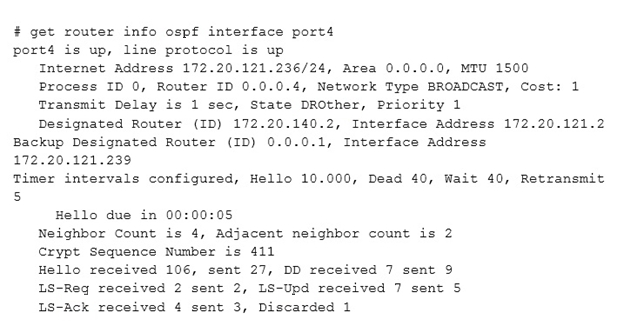

Examine the output of the "˜get router info ospf interface' command shown in the exhibit; then answer the question below. Which statements are true regarding the above output? (Choose two.)
A.
The port4 interface is connected to the OSPF backbone area.
B.
The local FortiGate has been elected as the OSPF backup designated router.
C.
There are at least 5 OSPF routers connected to the port4 network.
D.
Two OSPF routers are down in the port4 network.
The debate is between A, B and D.
-A is obviously correct.
-C is also correct. It says "connected to the port4 network", not "connected to port4". Port4 network is something like 172.20.0.0/16. Local FortiGate is 1 OSPF router and has 4 neighbors. There is a total of 5 OSPF routers in 172.20.0.0/16.
-Cannot be D because OSPF neighbors are simply routers that sit on the same segment and hear each other, but they do not engage in any closer cooperation. OSPF adjacent routers exchange routing information. That means that having 2 adjacent routers out of 4 neighbors doesn't mean that 2 routers are down.
A & C - just because the neighbor count is 4 and adjacency is 2 does not mean 2 routers are down. There are however 5 total OSPF routers. This device and the 4 neighbors.
