Exam NSE7_PBC-6.4 topic 1 question 13 discussion

Actual exam question from Fortinet's NSE7_PBC-6.4

Question #: 13
Topic #: 1

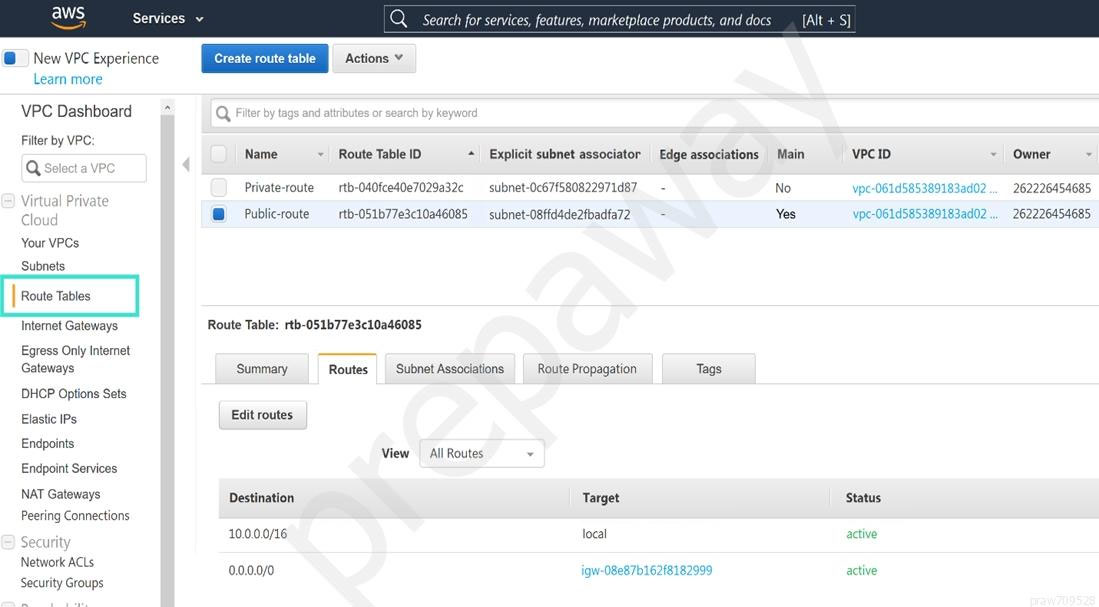

Refer to the exhibit. In your Amazon Web Services (AWS) virtual private cloud (VPC), you must allow outbound access to the internet and upgrade software on an
EC2 instance, without using a NAT instance. This specific EC2 instance is running in a private subnet: 10.0.1.0/24.
Also, you must ensure that the EC2 instance source IP address is not exposed to the public internet. There are two subnets in this VPC in the same availability zone, named public (10.0.0.0/24) and private (10.0.1.0/24).
How do you achieve this outcome with minimum configuration?

A. Deploy a NAT gateway with an EIP in the private subnet, edit the public main routing table, and change the destination route 0.0.0.0/0 to the target NAT gateway.
B. Deploy a NAT gateway with an EIP in the public subnet, edit route tables, select Public-route, and delete the route destination 10.0.0.0/16 to target local.
C. Deploy a NAT gateway with an EIP in the private subnet, edit route tables, select Private-route, and add a new route destination 0.0.0.0/0 to the target internet gateway.
D. Deploy a NAT gateway with an EIP in the public subnet, edit route tables, select Private-route and add a new route destination 0.0.0.0/0 to target the NAT gateway.

Show Suggested Answer

Suggested Answer: D 🗳️

by kinge2 at July 18, 2022, 10:41 a.m.

Comments

Submit Cancel

charruco

2 years, 4 months ago

Selected Answer: D

D is correct Deploy a NAT gateway with an EIP in the public subnet, edit route tables, select Private-route and add a new route destination 0.0.0.0/0 to target the NAT gateway.

upvoted 1 times

...

mordechayd

2 years, 6 months ago

D. you must put the Nat Gateway (NGW) on subnet with defult route to IGW and after that route the traffic from private subnet to the NGW , The nat gateway forward the traffic to IGW

upvoted 2 times

...

tachy_22

2 years, 9 months ago

I agree, D is correct.

upvoted 2 times

...

kinge2

2 years, 9 months ago

D is correct as per the study guide page 72 - AWS NAT gateway allows instances in a private subnet to connect to the internet or other AWS services without using NAT instance. the main routing table sends internet traffic from the private subnet instances to the NAT gateway, then NAT gateway sends traffic ti the IGW using the source IP address of the elastic IP address.

upvoted 3 times

...
