Exam HPE0-V14 topic 1 question 40 discussion

Actual exam question from HP's HPE0-V14
Question #: 40
Topic #: 1
[All HPE0-V14 Questions]

DRAG DROP -
A customer needs a new environment to support an ERP system. The sizing information you received shows the following requirements:
✑ 3 servers with dual AMD processors, 256GB RAM, and 10Gb network connectivity
✑ 10TB of high performance shared storage
✑ Cloud-based performance monitoring and analytics
The customer prefers rack mounted equipment.

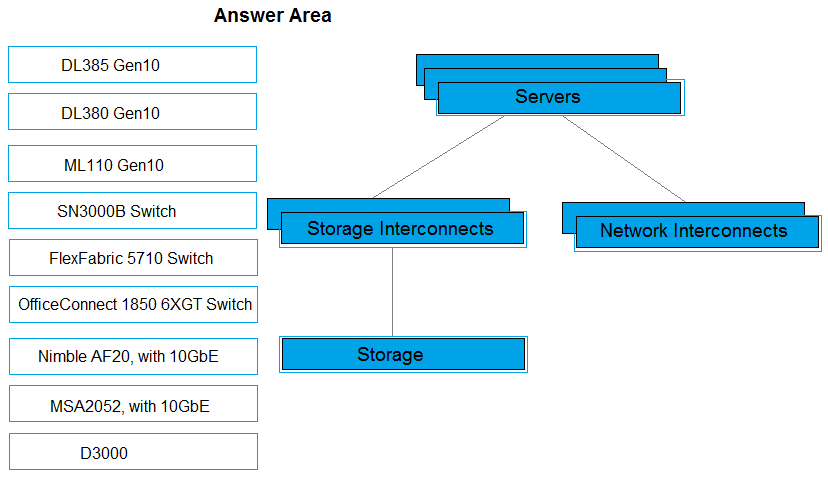

Identify the components that will meet the customer requirements, then drag the correct components on the left to their appropriate location in the environment on the right.
Select and Place:

Show Suggested Answer Hide Answer

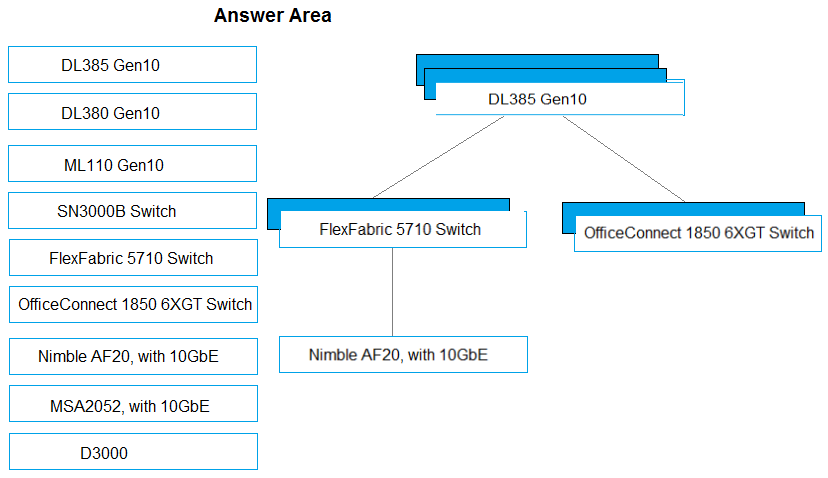

Suggested Answer:
by LaCruzconFlores at Aug. 14, 2020, 5:16 p.m.

Comments

Chosen Answer:
This is a voting comment (?). It is better to Upvote an existing comment if you don't have anything to add.
Switch to a voting comment New
Submit Cancel
iomd
Highly Voted 3 years, 2 months ago
I would choose DL385 servers, FLexFabric switchs for storage and network, and Nimble AF20
upvoted 6 times
...
DonChevoDeLaPaca
Most Recent 2 years, 7 months ago
DL385 Gen10, AMD CPU.. Yes + The HPE FlexFabric 5710 Switch Series provides choices that fit your budget and IT environment by offering different port density and speeds (1/10G) SFP+ or 10BASE-T with 40 and 100GbE high speed uplinks options. Although affordability priced, the HPE FlexFabric 5710 Switch Series offers a comprehensive set of data center features including full support for Layer 2, Layer 3, IPv4 and IPv6 networking protocols at no additional cost for these advanced features. ... YES + HPE Nimble Storage All Flash AF20 Base Array - Flash storage array - 48 bays - iSCSI (10 GbE) (external) - rack-mountable - 4U - CTO... YES +
upvoted 1 times
...
Radiohead316
2 years, 8 months ago
I don't see any HBAs, so I'm going DL385, 2x FlexFabric, and Nimble AF20
upvoted 2 times
...
sontung
2 years, 10 months ago
only 3000B support private cloud storage but not support BaseT. Chose DL385, SAN switch and network switch is 5710 and Nimble AF20.
upvoted 1 times
...
DelHQ
4 years, 8 months ago
I'd go with 3 x DL385 Gen10, 3 x 5710 (remember dual path for SAN), 1 x Nimble AF20. Servers and storage are 10Gb ethernet only (no FC stated) so SN3000 is out as FC, 1850 only has six ports so too small for LAN and underpowered for iSCSI SAN.
upvoted 4 times
...
Psycosis
4 years, 8 months ago
DL385 2 x Flexfabric 5710 and AF20 would be my pick The MSA2052 doesn’t come with 10GbE and the DS3000 is FC, so that would leave the nimble AF20 as being the only 10GbE capable storage device https://h20195.www2.hpe.com/v2/getdocument.aspx?docname=a00008277enw The officeconnect switch only just has enough ports, and I would not really class that as a rack mount switch, so that only leaves the 5710
upvoted 3 times
...
LaCruzconFlores
4 years, 9 months ago
SN3000B uses FC
upvoted 4 times
eshesh
4 years, 9 months ago
I agree - But I don't see why we should use the 1850 for the access network?!? So it'm seems kinda weird. Maybe 2 x FlexFabric?
upvoted 3 times
...
sage999
4 years, 9 months ago
Ok. But what we must use? (FlexFabric5710(serve+storage) and 1850 6XGT(Server+network) ???)
upvoted 2 times
...
...
