Exam HPE6-A49 topic 1 question 6 discussion

Actual exam question from HP's HPE6-A49

Question #: 6
Topic #: 1

A hospital needs an upgrade to 802.11ac for its wireless network. The wireless network supports:
✑ wireless medical devices
✑ medical staff voice communicators
✑ laptops in nurse stations
✑ medical staff tablets
✑ visitor and patient personal devices
All of these devices support both the 2.4GHz and 5GHz band. Assuming about a max throughput of 150 Mbps per AP, the hospital would like to support about 4
Mbps per client.

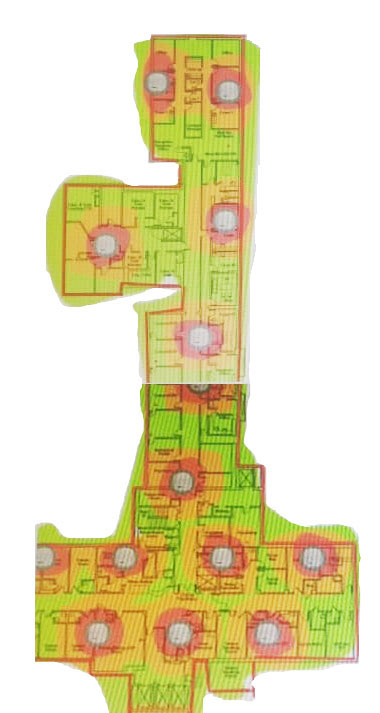

The architect has used VisualRF to plan the AP placement on one of the floors, which the hospital expects will need to support about 800 wireless devices. The exhibits show heatmaps from this plan. The architect also plans to deploy APs in stairwells between floors.
How well does the plan meet the requirements?

A. The current AP placement fails to account for the lead-lined walls that are common in patient and exam rooms.
B. The current AP placement fails to provide adequate signal for the voice communicators in several areas.
C. The current AP placement meets coverage requirements, but does not meet capacity requirements.
D. The current AP placement meets the customer requirements in terms of coverage and capacity.

Show Suggested Answer

Suggested Answer: D 🗳️

by Glepers at Sept. 8, 2020, 7:21 a.m.

Comments

Submit Cancel

Bar_x

2 years, 7 months ago

I think the best answer is B Since the cutoff signal is -56

upvoted 1 times

...

[Removed]

4 years, 8 months ago

I think this is C. Voice requires around -67Db. Question mentioned that 800 Clients and 4 Mbps. Also mentioned that every AP has 150 Mbps. If it mentions every radio has 150 Mbps, then d would correct. IMO coverage ok but capacity fails.

upvoted 1 times

...

TechBee

4 years, 8 months ago

I would also go with D. Looks right to me

upvoted 1 times

...

Glepers

4 years, 9 months ago

I think the best answer is B.

upvoted 2 times

...
