Exam C9030-644 topic 1 question 14 discussion

Actual exam question from IBM's C9030-644

Question #: 14
Topic #: 1

A customer is considering upgrading a z114 processor currently used as a standalone coupling facility (CF). The customer wants to upgrade to a z13s 2965-N10, but also wants to install additional capacity on this new z13s for two new LPARs running Linux workloads.
A sizing exercise has determined that the combined CF and Linux workload would total four ICFs, five IFLs, and 600 GB memory. The other systems in the customers environment are zEX12 servers.
The customer is reviewing the design for factors that will influence the hardware configuration.
Which of the following statements is true for this situation?

A. Integrated Coupling Adapter (ICA) cards can be installed in the zEC12 servers to improve performance.
B. The number of available LPARs on z13s may not be sufficient to meet all of the customer’s requirements.
C. The N10 may not provide sufficient InfiniBand slots for coupling links to the other systems in the customer’s sysplex.
D. The memory requirement of the configuration will force the N20 model type to be configured.

Show Suggested Answer

Suggested Answer: B 🗳️
Incorrect Answers:
A: The IBM Integrated Coupling Adapter (ICA SR), introduced on the IBM z13 and now available on the IBM z13s.

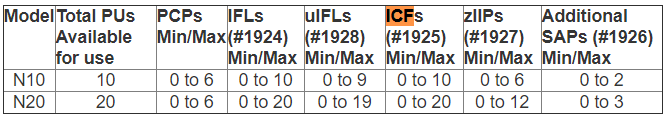

C: Listed below are the minimums and maximums of processor units (PUs) that may be purchased permanently.

D: The IBM 2965 Model N10 supports 64 to 984 GB of memory.
References:
https://www-01.ibm.com/common/ssi/ShowDoc.wss?docURL=/common/ssi/rep_sm/1/877/ENUS2965-_h01/index.html&lang=en&request_locale=en
