Exam JN0-661 topic 1 question 41 discussion

Actual exam question from Juniper's JN0-661

Question #: 41
Topic #: 1

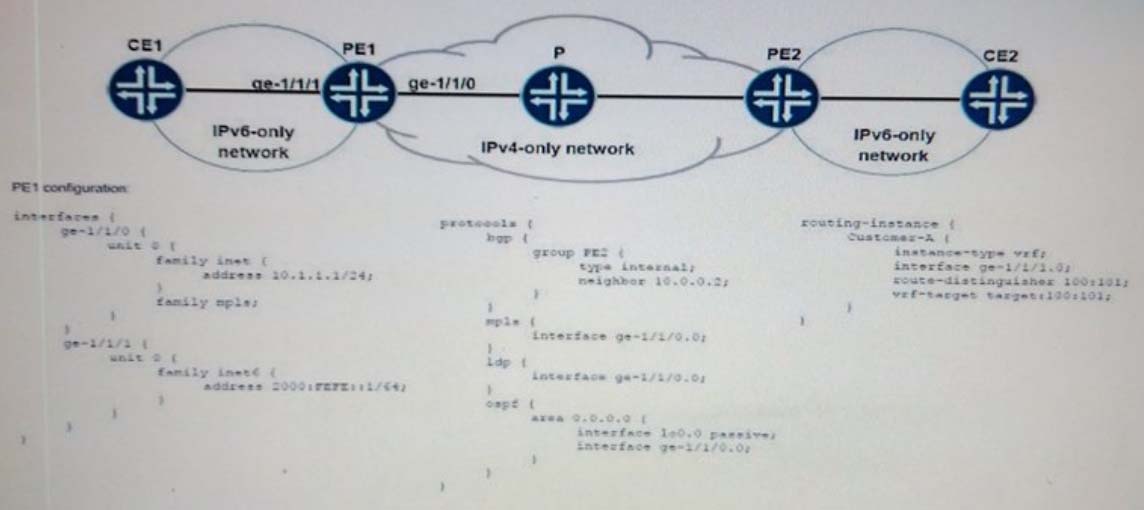

Click the Exhibit button.

ISP 1 wants to configure an IPv6 L3VPN over its IPv4-only MPLS network for Customer-A. PE1 has been configured as shown in the exhibit; however, IPv6 routes are not being passed between PE1 and PE2 in the Customer-A VPN.
In this scenario, which two commands are necessary on PE1 to enable IPv6 connectivity between CE1 and CE2? (Choose two.)

A. set protocols bgp group PE2 family inet6 unicast
B. set interfaces ge-1/1/1.0 family mpls
C. set protocols bgp group PE2 family inet6-vpn
D. set protocols mpls ipv6-tunneling

Show Suggested Answer

Suggested Answer: AD 🗳️
Tunneling IPv6 Traffic over MPLS IPv4 Networks
D: You enable IPv6 tunneling by including the ipv6-tunneling statement in the configuration for the PE routers.
A: BGP automatically runs its import policy even when copying routes from a primary routing table group to a secondary routing table group. If IPv4 labeled routes arrive from a BGP session (for example, when you have configured the labeled-unicast statement at the [edit protocols bgp family inet] hierarchy level on the PE router), the BGP neighbors import policy also accepts IPv6 routes, since the neighbors import policy is run while doing the copy operation to the inet6.3 routing table.
References:
http://www.juniper.net/documentation/en_US/junos15.1/topics/example/mpls-tunneling-ipv6-over-mpls-ipv4.html
